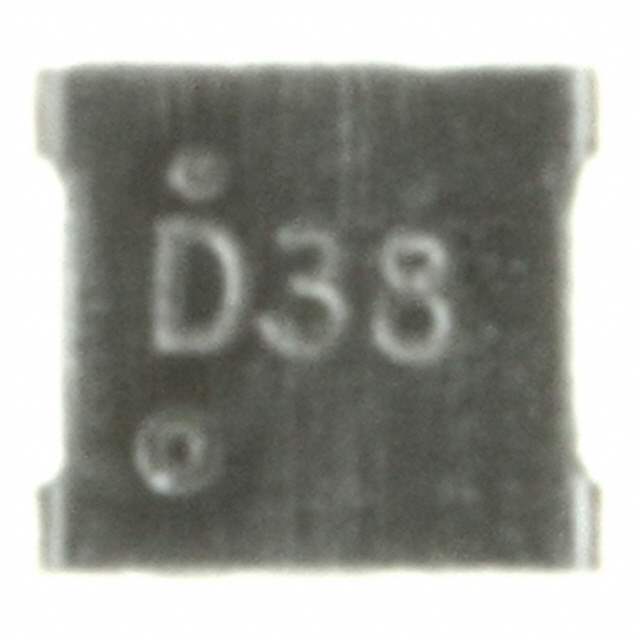

FDZ291P Real Image
Same model may have multiple batches, images only for reference.

FDZ291P

Part No FDZ291P
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 4.6A BGA
Datasheet
FDZ291P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 4.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 13nC @ 4.5V
Max Input Capacitance 1010pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 1.7W (Ta)
Maximum Rds On at Id,Vgs 40 mOhm @ 4.6A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 9-BGA (1.5x1.6)
Dimension 9-VFBGA
Win Source Part Number 108598-FDZ291P
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FDZ291P CAD Model

Description

The Fairchild/ON Semiconductor product with the Id 137350 is a high-performance MOSFET.

  • Package: Reel - TR
  • Mounting Type: SMD (SMT)
  • Channel Type: P-Channel
  • Maximum Power Dissipation: 1.7W (Ta)
  • Category: Discrete Semiconductor Products
  • Drive Voltage: 1.5V, 4.5V (Max Rds On, Min Rds On)
  • Status: Obsolete (EOL)
  • Temperature Range: -55°C to 150°C (TJ)
  • Package Dimension: 9-VFBGA
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 4.6A (Ta) @ 25°C
  • Gate-Source Threshold Voltage: 1V @ 250μA
  • Maximum Gate Charge: 13nC @ 4.5V
  • Maximum Input Capacitance: 1010pF @ 10V
  • Supply/Demand: Sufficient
