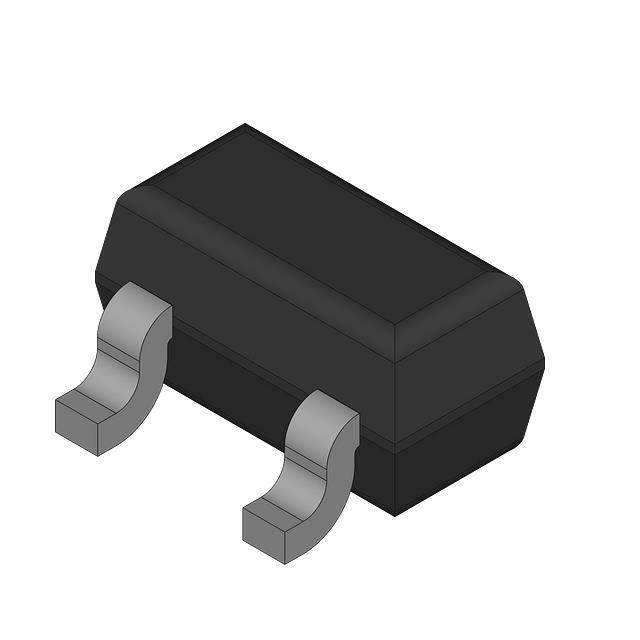

FJY3009R Real Image
Same model may have multiple batches, images only for reference.

FJY3009R

Part No FJY3009R
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 200MW SOT523F
Datasheet
FJY3009R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 40V
Resistor - Base (R1) (Ohms) 4.7k
Typical Gain (hFE) (Min) 100 @ 1mA, 5V
Max Vce (sat) 300mV @ 1mA, 10mA
Collector Cut-off Current(Max) 100nA (ICBO)
Frequency - Transition 250MHz
Maximum Power Dissipation 200mW
Mounting SMD (SMT)
Case / Package SOT-523F
Win Source Part Number 1038970-FJY3009R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FJY3009R CAD Model

Description

The Fairchild/ON Semiconductor FJY3009R is an NPN-pre-biased transistor that has a maximum current collector of 100mA and a frequency transition of 250MHz.

  • Maximum Current Collector: 100mA
  • Frequency Transition: 250MHz
  • Packaging: Reel-TR
  • Mounting: SMD (SMT)
  • Status: Obsolete (EOL)
  • Case/Package: SOT-523F
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
