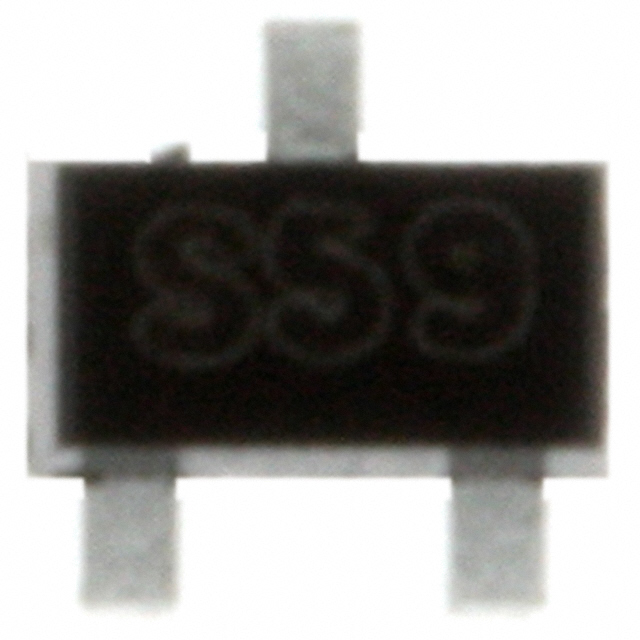

Same model may have multiple batches, images only for reference.
FJY4009R Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FJY4009R

Part No FJY4009R
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS PNP 200MW SOT523F
Datasheet
FJY4009R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity PNP - Pre-Biased
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 40V
Resistor - Base (R1) (Ohms) 4.7k
Typical Gain (hFE) (Min) 100 @ 1mA, 5V
Max Vce (sat) 300mV @ 1mA, 10mA
Collector Cut-off Current(Max) 100nA (ICBO)
Frequency - Transition 200MHz
Maximum Power Dissipation 200mW
Mounting SMD (SMT)
Case / Package SOT-523F
Win Source Part Number 1038974-FJY4009R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FJY4009R CAD Model

Description

The Fairchild/ON Semiconductor FJY4009R is a PNP-pre-biased transistor designed for use in discrete semiconductor products. With a maximum current collector of 100mA and a VCEO maximum collector-emitter breakdown voltage of 40V, this transistor is an ideal choice for a range of applications.

  • Manufacturer: Fairchild/ON Semiconductor
  • Product Name: FJY4009R
  • Maximum Current Collector: 100mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 40V
  • Frequency-Transition: 200MHz
  • Typical Gain (hFE) (Min): 100 @ 1mA, 5V
  • Max Vce (sat): 300mV @ 1mA, 10mA
  • Collector Cut-Off Current (Max): 100nA (ICBO)
  • Package: SMD SOT-523F
  • Operating Temperature: -55°C to 150°C (TJ)
  • Popularity: Medium
  • Supply and Demand: Sufficient
