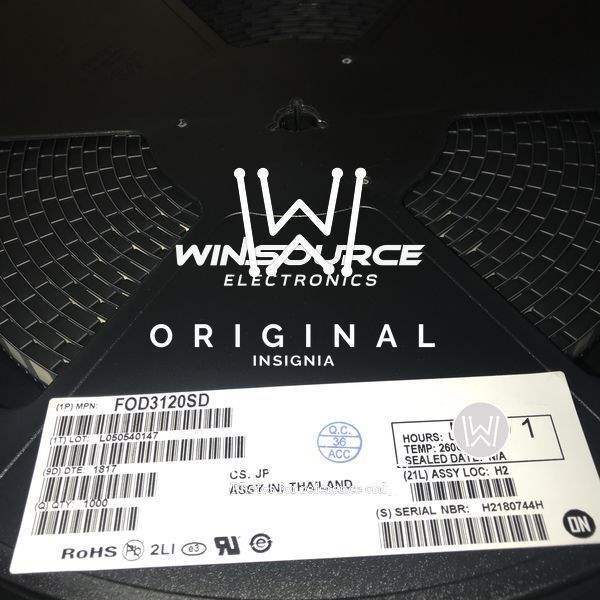

FOD3120SD Fairchild/ON Semiconductor FOD3120SD Real Image FOD3120SD label picture
Same model may have multiple batches, images only for reference.
FOD3120SD Fairchild/ON Semiconductor FOD3120SD Real Image FOD3120SD label picture
FOD3120SD Fairchild/ON Semiconductor FOD3120SD Real Image FOD3120SD label picture
Same model may have multiple batches, images only for reference.

FOD3120SD

Part No FOD3120SD
Manufacturer Fairchild/ON Semiconductor
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV GATE DRIVER 8SMDIP
Datasheet
FOD3120SD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Technology Optical Coupling
Number of Channels 1
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 35kV/μs
Propagation Delay tpLH / tpHL (Max) 400ns, 400ns
Pulse Width Distortion (Max) 100ns
Rise and Fall Time 60ns, 60ns
Current - Output High, Low 2A, 2A
Current - Peak Output 3A
Forward Voltage 1.5V
Continuous forward current- Max 25mA
Supply Voltage - Operating 15 V to 30 V
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 8-SMD
Approvals IEC, UL
Win Source Part Number 067340-FOD3120SD
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name FOD3120
Introduction Date February 11, 2002
ECCN EAR99
Country of Origin Japan, Thailand
Halogen Free Compliant
Estimated EOL Date 2023
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian FOD3120SD CAD Model

Description

The Fairchild/ON Semiconductor FOD3120SD is an optical coupling component with high market popularity.

  • Output Current: 2A (High), 2A (Low)
  • Common Mode Transient Immunity: 35kV/μs
  • Isolation Voltage: 5000Vrms
  • Package: 8-SMD
  • Operating Temperature: -40°C to 100°C
  • Commonly Used: Industrial Applications
