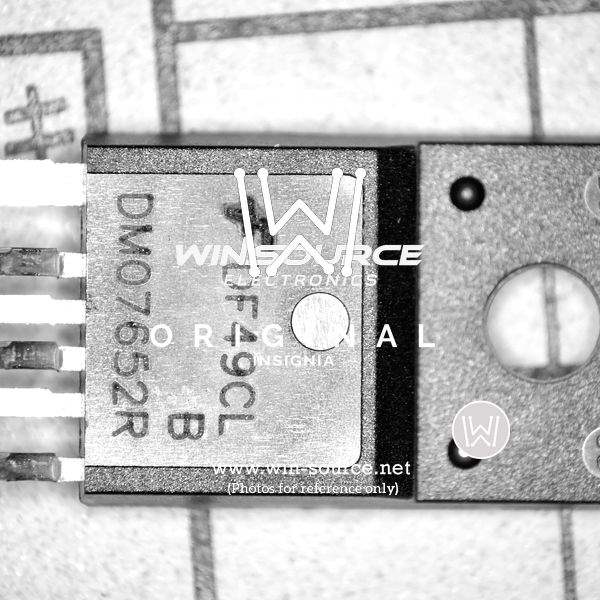

FSDM07652RBWDTU Fairchild/ON Semiconductor FSDM07652RBWDTU Real Image
Same model may have multiple batches, images only for reference.

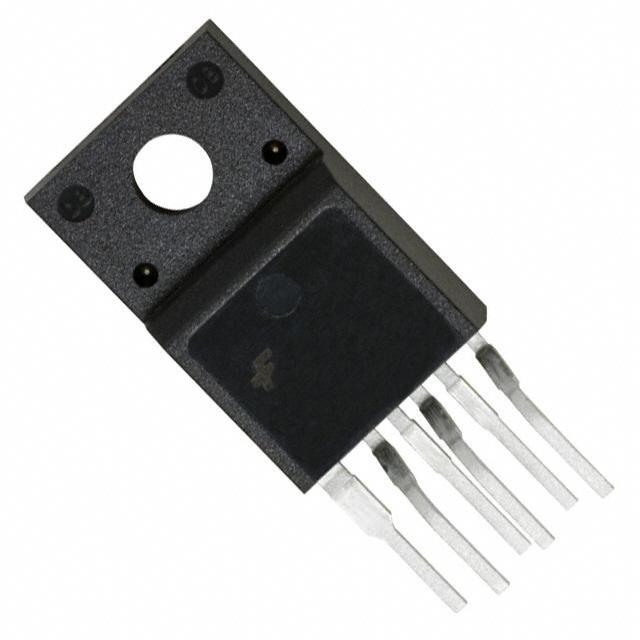

FSDM07652RBWDTU Fairchild/ON Semiconductor FSDM07652RBWDTU Real Image
FSDM07652RBWDTU Fairchild/ON Semiconductor FSDM07652RBWDTU Real Image
Same model may have multiple batches, images only for reference.

FSDM07652RBWDTU

Part No FSDM07652RBWDTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC SWIT PWM GREEN CM HV TO220F
Datasheet
FSDM07652RBWDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Not For New Designs
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 12V
Supply Voltage - Operating 8 V to 20 V
Duty Cycle 80%
Frequency - Switching 66kHz
Power (Watts) 80W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage
Control Operating Temperature -25°C to 85°C (TA)
Case / Package TO-220F-6L (Forming)
Mounting Through Hole
Win Source Part Number 204335-FSDM07652RBWDTU
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name FSDM07652
Introduction Date July 27, 2004
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian FSDM07652RBWDTU CAD Model

Description

The FSDM07652RBWDTU is a flyback topology integrated circuit (IC) from Fairchild/ON Semiconductor.

  • Mounting: Through-Hole
  • Package: TO-220F-6L (forming)
  • Packaging: Tube/Rail
  • Output: Isolated
  • Power: 80W
  • Voltage Breakdown: 650V
  • Internal Switch: Yes
  • Voltage Start-Up: 12V
  • Duty Cycle: 80%
  • Frequency-Switching: 66kHz
  • Fault Protection: Current Limiting, Over-Load, Over-Temperature, Over-Voltage
  • Status: Not for New Designs
  • Popularity: High
  • EOL Date: Obsolete
  • Halogen-Free: Compliant
