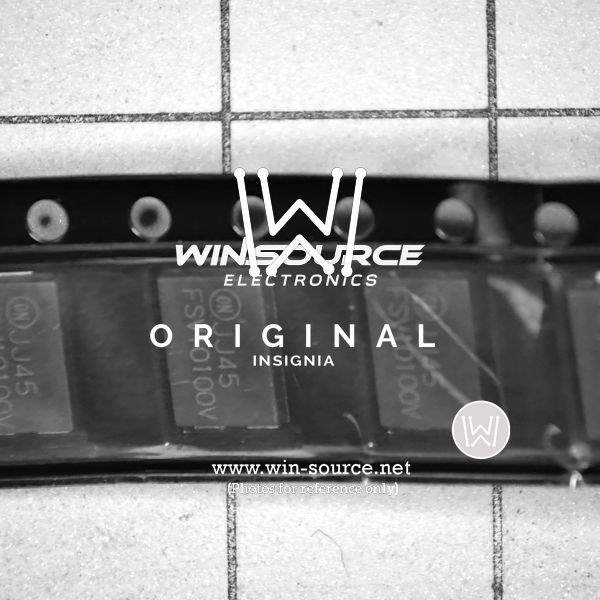

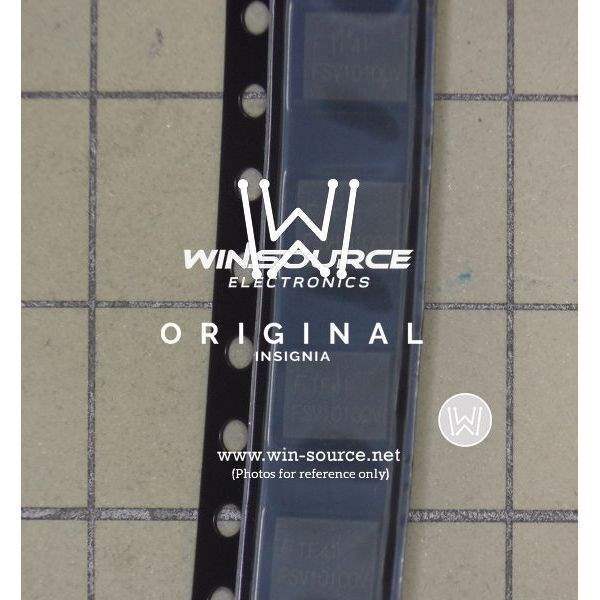

FSV10100V Real Image FSV10100V real image FSV10100V Real Image
Same model may have multiple batches, images only for reference.
FSV10100V Real Image FSV10100V real image FSV10100V Real Image
FSV10100V Real Image FSV10100V real image FSV10100V Real Image
Same model may have multiple batches, images only for reference.

FSV10100V

Part No FSV10100V
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 10A TO277-3 / Diode Schottky 100V 10A 3-Pin(2+Tab) TO-277 T/R
Datasheet
FSV10100V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series Automotive, AEC-Q101
Packaging Reel package
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) @ If 670mV @ 10A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 22.94ns
Current - Reverse Leakage @ Vr 60μA @ 100V
Capacitance @ Vr, F 796pF @ 4V, 1MHz
Mounting SMD
Package TO-277, 3-PowerDFN
Manufacturer Package TO-277-3
Operating Temperature - Junction -55°C ~ 150°C
Win Source Part Number 774801-FSV10100V
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Family Name FSV10100V
Introduction Date June 05, 2015
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian FSV10100V CAD Model

Description

The FSV10100V is a Schottky diode designed and manufactured by Fairchild/ON Semiconductor.

  • Automotive, AEC-Q101 Series: Yes
  • Package: TO-277, 3-PowerDFN
  • Mounting Type: SMD
  • Current Rating: 10A
  • Voltage Rating: 100V
  • Operating Temperature: -55°C ~ 150°C
  • Reverse Recovery Time: 22.94ns
  • Capacitance: 796pF @ 4V, 1MHz
  • Halogen Free: Yes
  • Supply and Demand Status: Balance
