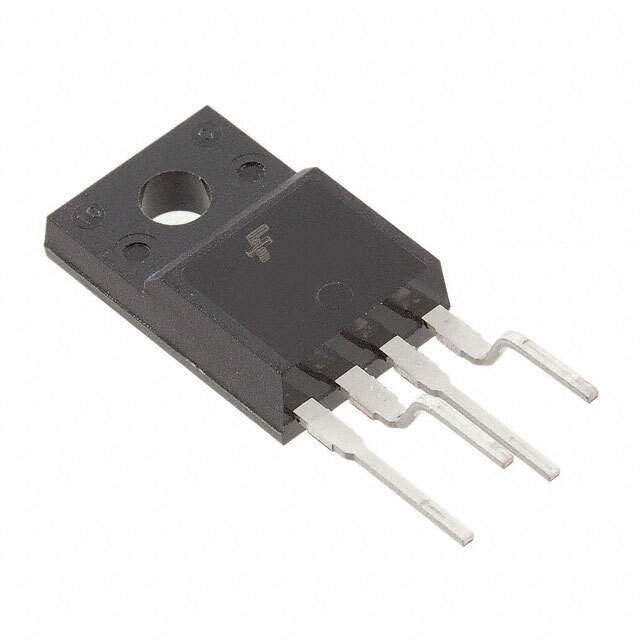

KA1M0565RYDTU Real Image
Same model may have multiple batches, images only for reference.

KA1M0565RYDTU

Part No KA1M0565RYDTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC FPS SWITCH DVDP/STB TO-220-4
Datasheet
KA1M0565RYDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Not For New Designs
Output Isolation Non-Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback, Forward
Voltage - Start Up 15V
Supply Voltage - Operating 10 V to 30 V
Duty Cycle 77%
Frequency - Switching 67kHz
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage
Control Operating Temperature -25°C to 85°C (TA)
Case / Package TO-220F-4L (Forming)
Mounting Through Hole
Win Source Part Number 1050577-KA1M0565RYDTU
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian KA1M0565RYDTU CAD Model

Description

The Fairchild/ON Semiconductor KA1M0565RYDTU is a Flyback, Forward topology switch mode power supply controller with non-isolated output isolation.

  • Package: TO-220F-4L (Forming)
  • Voltage Breakdown: 650V
  • Operating Temperature Range: -25°C to 85°C (TA)
  • Switching Frequency: 67kHz
  • Category: Integrated Circuits
  • Status: Not for new designs
  • Packaging: Tube/rail
  • Popularity: Medium
