Same model may have multiple batches, images only for reference.

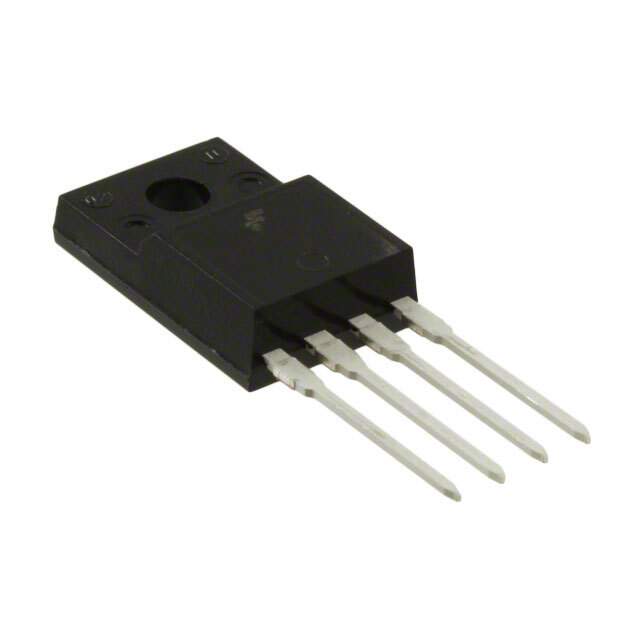

KA378R05TSTU Real Image
Same model may have multiple batches, images only for reference.

KA378R05TSTU

Part No KA378R05TSTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 3A TO220FL
Datasheet
KA378R05TSTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 0.5V @ 3A
Output Current 3A
Operating Supply Current 10mA
Control Protection Features Over Current, Over Temperature, Over Voltage, Short Circuit
Temperature Range - Operating -20°C to 80°C
Mounting Through Hole
Case / Package TO-220F-4L
Win Source Part Number 1050615-KA378R05TSTU
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian KA378R05TSTU CAD Model

Description

The KA378R05TSTU is a fixed output voltage regulator with a 3A output current capability.

  • Operating Temperature: -20°C to 80°C
  • Maximum Input Voltage: 35V
  • Nominal Output Voltage: 5V
  • Dropout Voltage: 0.5V @ 3A
  • Operating Supply Current: 10mA
  • Control Protection Features: Over current, over temperature, over voltage, and short circuit
  • Package: TO-220F-4L
  • Packaging: Tube/rail
  • Supply and Demand Status: Balanced
