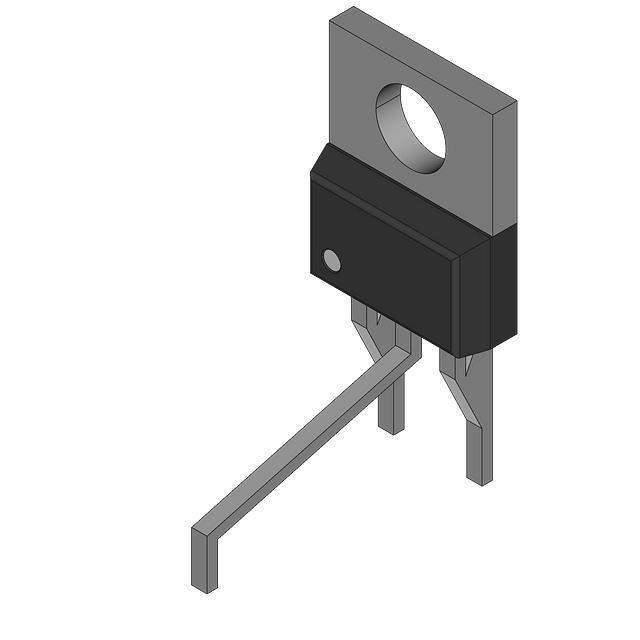

KSC5042MSTU Real Image
Same model may have multiple batches, images only for reference.

KSC5042MSTU

Part No KSC5042MSTU
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 900V 0.1A TO-126
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 900V
Max Vce (sat) 5V @ 4mA, 20mA
Collector Cut-off Current(Max) 10μA (ICBO)
Typical Gain (hFE) (Min) 30 @ 10mA, 5V
Maximum Power Dissipation 6W
Mounting Through Hole
Case / Package TO-126-3
Win Source Part Number 1050955-KSC5042MSTU
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian KSC5042MSTU CAD Model

Description

The KSC5042MSTU is an NPN transistor designed for use in low power applications.

  • Maximum Current Collector: 100mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 900V
  • Maximum Vce (sat): 5V @ 4mA, 20mA
  • Typical Gain (hFE) (Min): 30 @ 10mA, 5V
  • Package: TO-126-3
  • Maximum Power Dissipation: 6W
  • Status: obsolete
