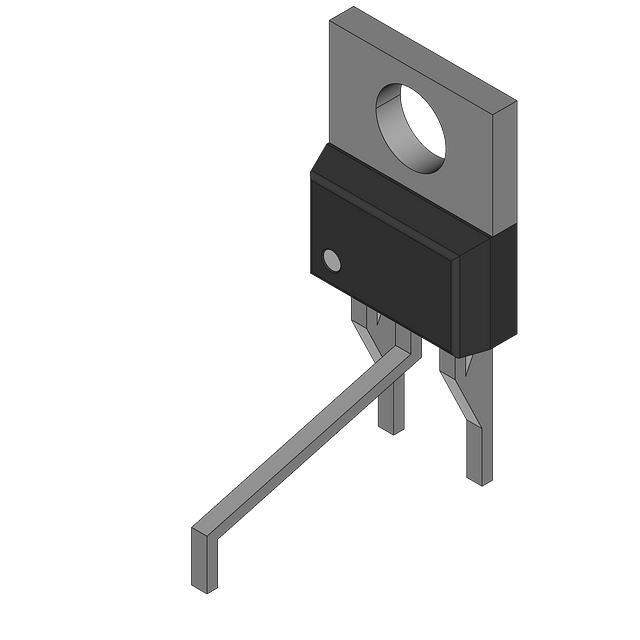

KSD986YS Real Image
Same model may have multiple batches, images only for reference.

KSD986YS

Part No KSD986YS
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description Low Frequency Power Amplifier
Datasheet
KSD986YS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN - Darlington
Current - Collector (Ic) (Maximum) 1.5A
Voltage - Collector Emitter Breakdown (Maximum) 80V
Vce Saturation (Maximum) @ Ib, Ic 1.5V @ 1mA, 1A
Current - Collector Cutoff (Maximum) 10μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 8000 @ 1A, 2V
Power - Max 1W
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-225AA, TO-126-3
Manufacturer Package TO-126-3
Win Source Part Number 1193640-KSD986YS
Manufacturer Homepage www.fairchildsemi.com
Family Name KSD986Y
Introduction Date November 14, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian KSD986YS CAD Model

Description

The Fairchild/ON Semiconductor KSD986YS is an NPN-Darlington transistor that can handle a maximum power of 1W.

  • Collector Current (Ic): 1.5A
  • Collector-Emitter Breakdown Voltage (Vce): 80V
  • Vce Saturation: 1.5V @ 1mA, 1A
  • Collector Cutoff: 10μA (ICBO)
  • DC Current Gain (hFE): 8000 @ 1A, 2V
  • Package: TO-225AA and TO-126-3
  • Mounting: through hole
  • Operating Temperature Range: 150°C (TJ)
  • Category: discrete semiconductor products
  • Status: obsolete (EOL)
  • Popularity: medium
  • Introduction Date: November 14, 2000
  • ECCN Compliant: Yes
