Same model may have multiple batches, images only for reference.

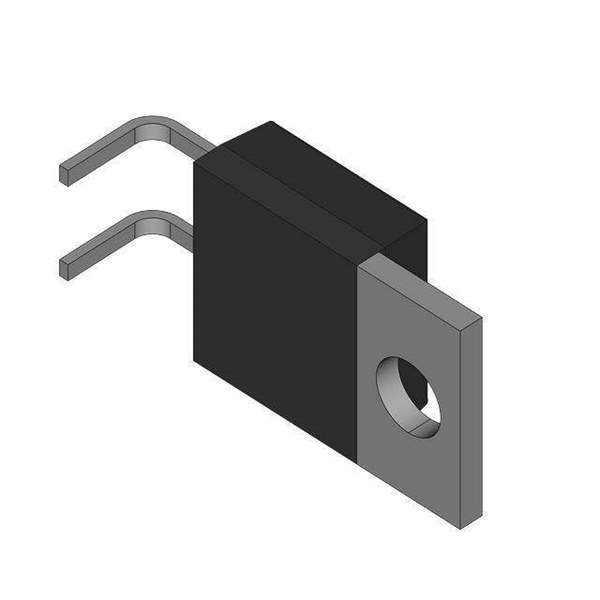

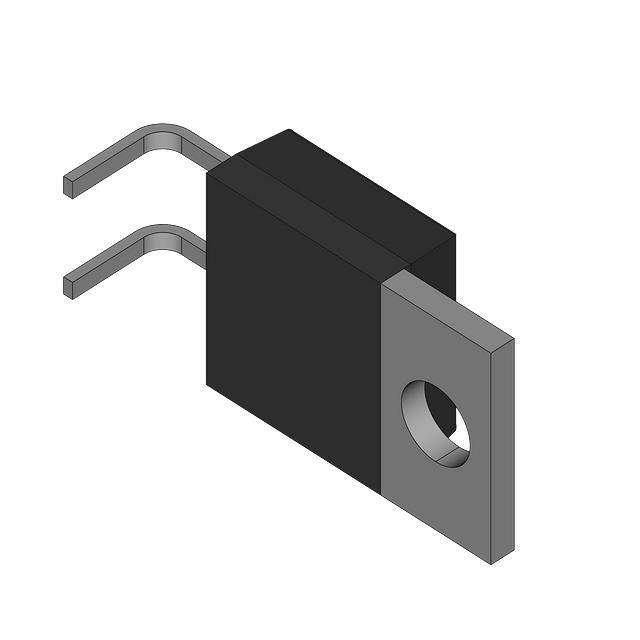

MBR735 Real Image
Same model may have multiple batches, images only for reference.

MBR735

Part No MBR735
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 35V 7.5A TO220-2
Datasheet
MBR735 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 35V
Current - Average Rectified (Io) 7.5A
Voltage - Forward (Vf) (Max) @ If 840mV @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 35V
Mounting Through Hole
Case / Package TO-220-2
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 044285-MBR735
Ultra Librarian 3D Model Ultra Librarian MBR735 CAD Model

Description

The MBR735 is a Schottky diode manufactured by ON Semiconductor.

  • Voltage - DC Reverse (Vr): 35V
  • Average Rectified Current (Io): 7.5A
  • Voltage - Forward (Vf) (maximum) @ If: 840mV @ 15A
  • Current - Reverse Leakage @ Vr: 100μA @ 35V
  • Package: TO-220-2
  • Mounting: through hole
  • Speed (Frequency): 200mA (Io)
  • Operating Temperature Range: -65°C to 175°C
  • Category: discrete semiconductor product
  • Status: active
  • Popularity: low
