Same model may have multiple batches, images only for reference.

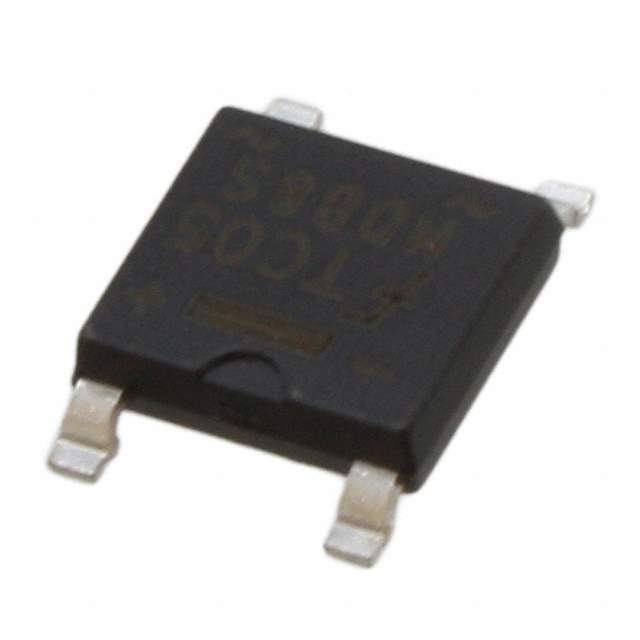

MDB8S Real Image
Same model may have multiple batches, images only for reference.

MDB8S

Part No MDB8S
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description IC BRIDGE DIODE 800V 4-MICRODIP
Datasheet
MDB8S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 10μA @ 800V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 4-MicroDIP/SMD
Win Source Part Number 023168-MDB8S
Popularity Medium
Supply and Demand Status Limited
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian MDB8S CAD Model

Description

The Fairchild/ON Semiconductor MDB8S is a single-phase diode type electronic component with an average rectified current of 1A and a forward voltage of 1.1V @ 1A.

  • Type: Single-phase diode
  • Average Rectified Current: 1A
  • Forward Voltage: 1.1V @ 1A
  • Reverse Leakage Current: 10μA @ 800V
  • Peak Reverse Voltage: 800V
  • Package: 4-MicroDIP/SMD
  • Status: Active
  • Application: Power management applications in the industrial field
  • Supply and demand: Limited
