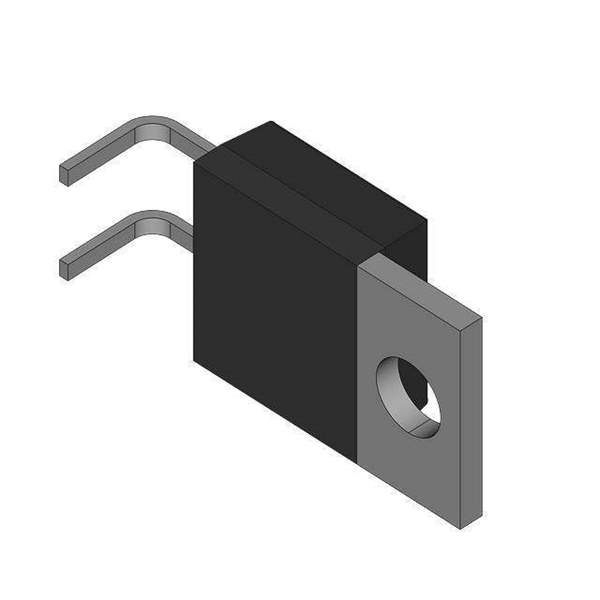

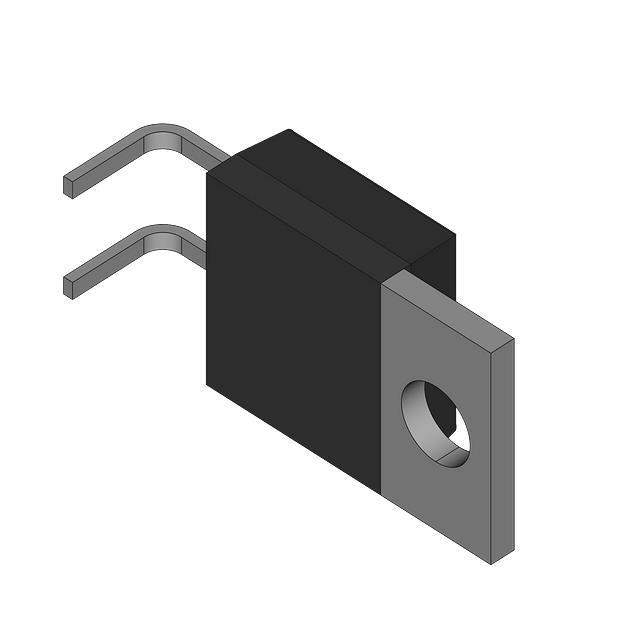

MUR840 Real Image
Same model may have multiple batches, images only for reference.

MUR840

Part No MUR840
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 400V 8A TO220AC
Datasheet
MUR840 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 1.3V @ 8A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 70ns
Current - Reverse Leakage @ Vr 100μA @ 400V
Mounting Through Hole
Case / Package TO-220AC
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 1081167-MUR840
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian MUR840 CAD Model

Description

The MUR840 is a standard diode manufactured by Fairchild/ON Semiconductor. Fairchild/ON Semiconductor MUR840.

  • Mounting: through-hole
  • Reverse Voltage: 400V (max)
  • Rectified Current: 8A (average)
  • Forward Voltage: 1.3V @ 8A
  • Reverse Recovery Time: 70ns
  • Current Leakage: 100μA @ 400V
  • Temperature Range: -65°C to 175°C
  • Use: discrete semiconductor products
