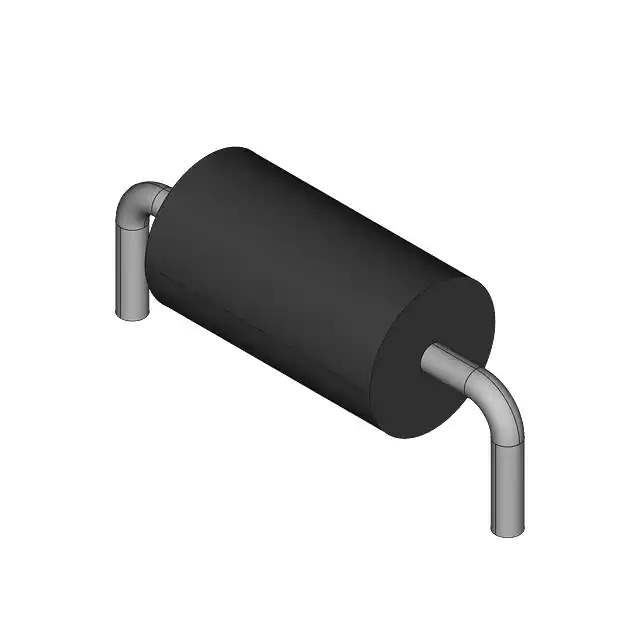

SB320 Real Image
Same model may have multiple batches, images only for reference.

SB320

Part No SB320
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 3A DO201
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Fairchild/ON Semiconductor
Package Bulk
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 490 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 20 V
Mounting Type Through Hole
Package / Case DO-201AA, DO-27, Axial
Supplier Device Package DO-201
Operating Temperature - Junction -50°C ~ 150°C
Base Product Number SB32
Standard Package 2,049 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 663795-SB320
Ultra Librarian 3D Model Ultra Librarian SB320 CAD Model

Description

The 663795-SB320 is a single Schottky diode designed for use in discrete semiconductor products.

  • Maximum DC Reverse Voltage (Vr): 20V
  • Average Rectified Current (Io): 3A
  • Forward Voltage (Vf): 490mV @ 3A
  • Reverse Leakage Current: 500μA @ 20V
  • Junction Temperature Range: -50°C to 150°C
  • Mounting Type: Through Hole
  • Package: DO-201AA (DO-27)
  • Status: Active
  • Manufacturer: Fairchild/ON Semiconductor
