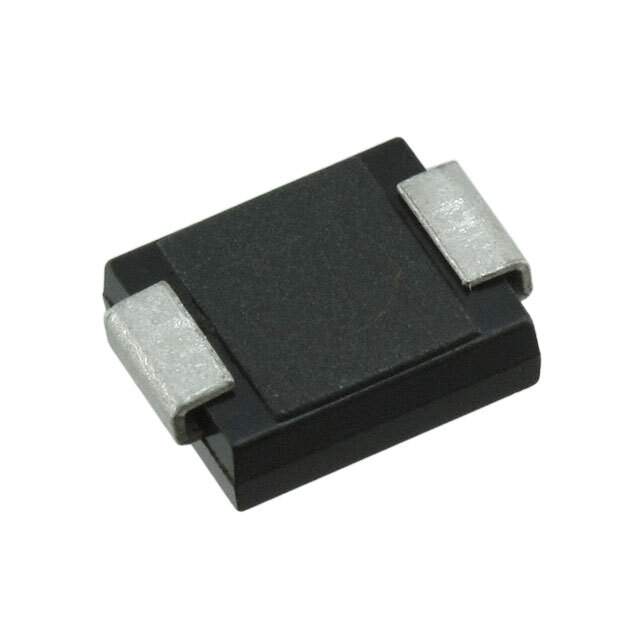

SS36

Name: SS36
Brand: Fairchild/ON Semiconductor
SKU: 340571
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SS36
Manufacturer	Fairchild/ON Semiconductor
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 60V 3A SMC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Maximum)	60V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Maximum) @ If	750mV @ 3A
Speed	Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr	500μA @ 60V
Mounting	SMD
Package	DO-214AB, SMC
Manufacturer Package	SMC (DO-214AB)
Operating Temperature - Junction	-55°C ~ 150°C
Win Source Part Number	066055-SS36
Family Name	SS36
Introduction Date	January 14, 2000
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2023
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Power Management
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Not For New Designs
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	60V
Voltage - Forward (Vf) (Max) @ If	750mV @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500µA @ 60V
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
Ultra Librarian 3D Model	Ultra Librarian SS36 CAD Model

Alternative Products

Description

The SS36 from Fairchild/ON Semiconductor is a fast recovery Schottky diode with a current rating of 3A and a maximum reverse voltage rating of 60V.

Package: DO-214AB SMC
Forward Voltage Drop: 750mV @ 3A
Reverse Leakage Current: 500μA @ 60V
Operating Temperature Range: -55°C to 150°C
Halogen-Free: Yes
Popularity: High
Supply and Demand Status: Sufficient
