Same model may have multiple batches, images only for reference.

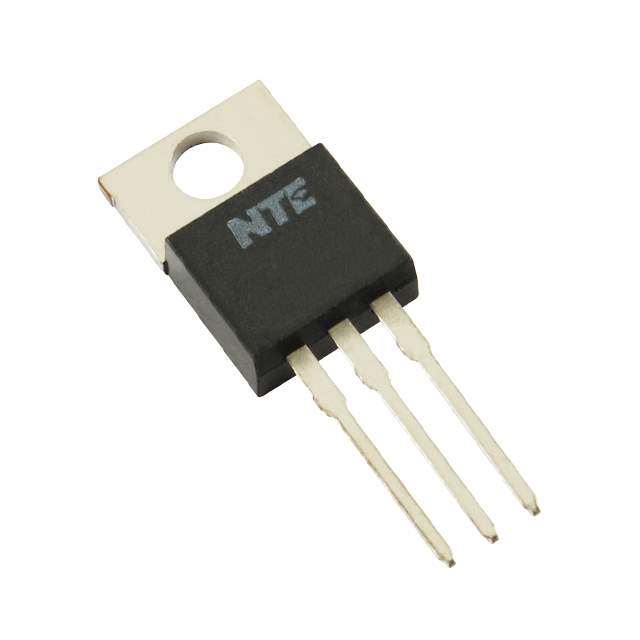

TIP41B Real Image
Same model may have multiple batches, images only for reference.

TIP41B

Part No TIP41B
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 80V 6A TO-220AB
Datasheet
TIP41B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Active
Transistor Polarity NPN
Maximum Current Collector 6A
VCEO Maximum Collector-Emitter Breakdown Voltage 80V
Max Vce (sat) 1.5V @ 600mA, 6A
Collector Cut-off Current(Max) 700μA
Typical Gain (hFE) (Min) 15 @ 3A, 4V
Maximum Power Dissipation 2W
Frequency - Transition 3MHz
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-220AB
Win Source Part Number 052102-TIP41B
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TIP41B CAD Model

Description

The ON Semiconductor 052102-TIP41B is an active electronic component with medium popularity in the market.

  • Maximum current collector: 6A
  • VCEO maximum collector-emitter breakdown voltage: 80V
  • Transistor polarity: NPN
  • Maximum power dissipation: 2W
