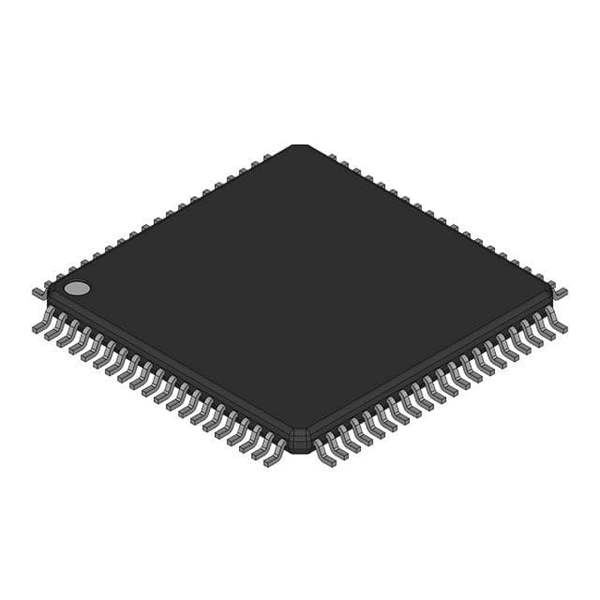

TMC1103KLC20 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

TMC1103KLC20

Part No TMC1103KLC20
Manufacturer Fairchild/ON Semiconductor
Catalog Data Acquisition - ADCs/DACs - Special Purpose
Description ADC, PROPRIETARY METHOD, 8-BIT / 8 Bit Analog to Digital Converter 6 Input 3 Pipelined 80-MQFP (20x14)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Data Acquisition - Analog to Digital Converters (ADC)
Mfr Fairchild Semiconductor
Series Fairchild Semiconductor
Package Bulk
Number of Bits 8
Sampling Rate (Per Second) 20M
Number of Inputs 6
Input Type Single Ended
Data Interface Parallel
Configuration S/H-ADC
Number of A/D Converters 3
Architecture Pipelined
Reference Type External
Voltage - Supply, Analog 4.75V ~ 5.25V
Voltage - Supply, Digital 4.75V ~ 5.25V
Temperature Range - Operating 0°C ~ 70°C
Package / Case 80-BQFP
Supplier Device Package 80-MQFP (20x14)
Mounting SMD (SMT)
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2156-TMC1103KLC20,FAIFSCTMC1103KLC20
Standard Package 1
Win Source Part Number 1206148-TMC1103KLC20
Ultra Librarian 3D Model Ultra Librarian TMC1103KLC20 CAD Model

Description

The TMC1103KLC20 is an 8-bit pipelined analog-to-digital converter (ADC) integrated circuit (IC) manufactured by Fairchild Semiconductor.

  • Sampling Rate: 20M per second
  • Package: Bulk
  • Inputs: 6 Single-Ended
  • A/D Converters: 3
  • Reference Type: External
  • Analog and Digital Voltage Supply: 4.75V to 5.25V
  • Data Interface: Parallel
  • Mounting Type: SMD (SMT)
  • REACH: Unaffected
  • ECCN: EAR99
