Same model may have multiple batches, images only for reference.

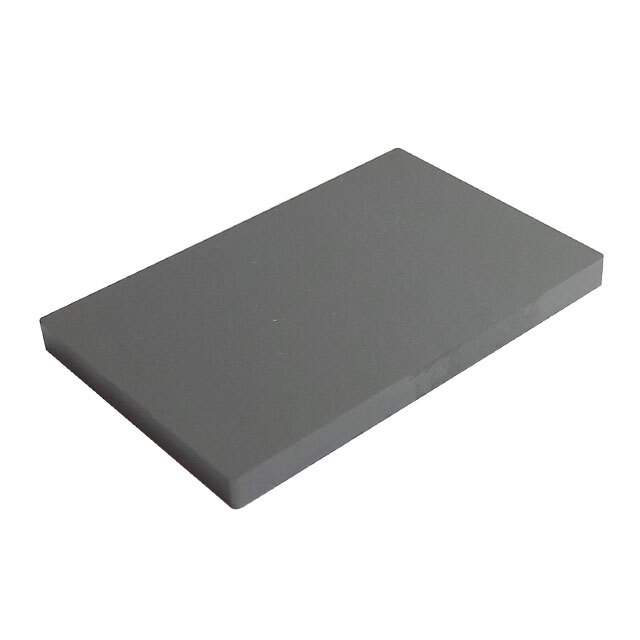

PLT13/9/1-3C95 Real Image
Same model may have multiple batches, images only for reference.

PLT13/9/1-3C95

Part No PLT13/9/1-3C95
Manufacturer Ferroxcube
Catalog Ferrite Cores
Description FERRITE CORE / Ferrite Core EQ Core
Datasheet
PLT13/9/1-3C95 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Magnetics - Transformer, Inductor Components
Manufacturer Ferroxcube
Series *
Core Type PLT
Material 3C95
Finish Uncoated
Manufacturer Package PLT 13 x 9 x 1
Height 1.10mm
Length 12.80mm
Width 8.70mm
Win Source Part Number 780433-PLT13/9/1-3C95
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian PLT13/9/1-3C95 CAD Model

Description

The Ferroxcube 780433-PLT13/9/1-3C95 transformer inductor component is a high-quality product.

  • Core Type: PLT
  • Material: 3C95
  • Length: 12.80mm
  • Width: 8.70mm
  • Height: 1.10mm
  • Finish: Uncoated
  • Estimated EOL Date: 2028
  • Category: Magnetics - Transformer, Inductor Components
  • Manufacturer Package: PLT 13 x 9 x 1
