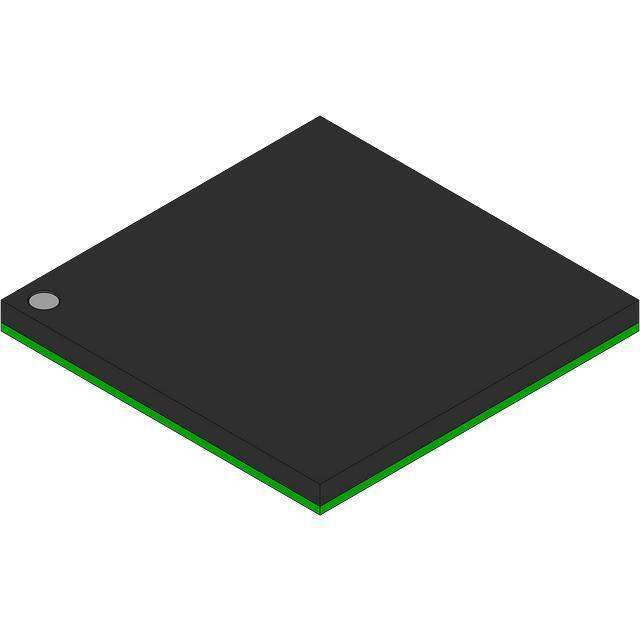

The DSP56311VL150 is a high-performance 24-bit Digital Signal Processor (DSP) manufactured by Freescale Semiconductor, now NXP Semiconductors. It is designed for a wide range of signal processing applications, offering substantial computational power and a rich set of peripherals. With its advanced architecture and instruction set, it enables efficient implementation of complex algorithms.

Applications

• Audio processing (e.g., equalizers, effects processors)
• Voice recognition systems
• Motor control applications
• Telecommunications equipment
• Industrial control systems
• Image processing
• Sonar and radar systems

Features

• 24-bit fixed-point DSP core
• Operating frequency: 150 MHz
• On-chip memory (RAM and ROM)
• Serial communication interfaces (SCI, SPI)
• Parallel host interface
• Timer modules
• Analog-to-digital converters (ADCs) and Digital-to-analog converters (DACs)

Benefits

• High processing speed for real-time applications
• Flexible architecture for various signal processing tasks
• Integrated peripherals reduce external component count
• Cost-effective solution for embedded systems

Additional Details

The DSP56311VL150 features a modified Harvard architecture, allowing simultaneous fetching of instructions and data. It also supports various addressing modes for efficient memory access. The on-chip memory includes both program RAM and data RAM, providing flexibility for storing code and data. The parallel host interface allows for easy communication with external microcontrollers or processors. The available communication interfaces (SCI, SPI) enable connectivity with a variety of peripheral devices. Detailed specifications, including memory sizes, peripheral configurations, and power consumption, can be found in the Freescale/NXP datasheet.
