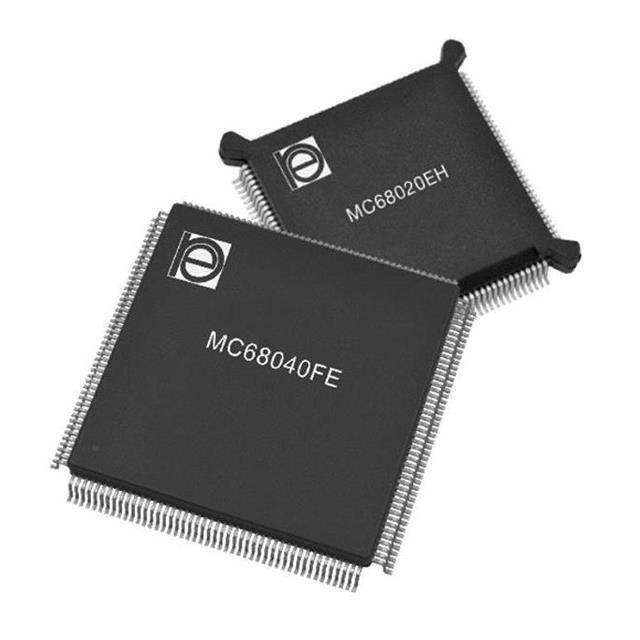

MC68LC040FE20A Real Image
Same model may have multiple batches, images only for reference.

MC68LC040FE20A

Part No MC68LC040FE20A
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU M680X0 20MHZ 184CQFP
Datasheet
MC68LC040FE20A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Obsolete(EOL)
Core Processor 68040
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 20MHz
Graphics Acceleration No
Voltage - I/O 5.0V
Temperature Range - Operating 0°C to 70°C (TA)
Security Package / Case 184-BCQFP
Case / Package 184-CQFP (31.3x31.3)
Additional Interfaces SCI, SPI
Win Source Part Number 207971-MC68LC040FE20A
Ultra Librarian 3D Model Ultra Librarian MC68LC040FE20A CAD Model

Description

The NXP MC68LC040FE20A is a 32-bit microprocessor with a single core.

  • Processing Speed: 20MHz
  • Case/Package: 184-CQFP (31.3x31.3)
  • Co-processors/DSP: No
  • RAM Controllers: No
  • Graphics Acceleration: No
  • Ethernet: No
  • SATA: No
  • Additional Interfaces: SCI and SPI
  • Operating Voltage: 5.0V
  • Temperature Range: 0°C to 70°C (TA)
  • Status: Obsolete (EOL)
  • Category: Integrated circuits
