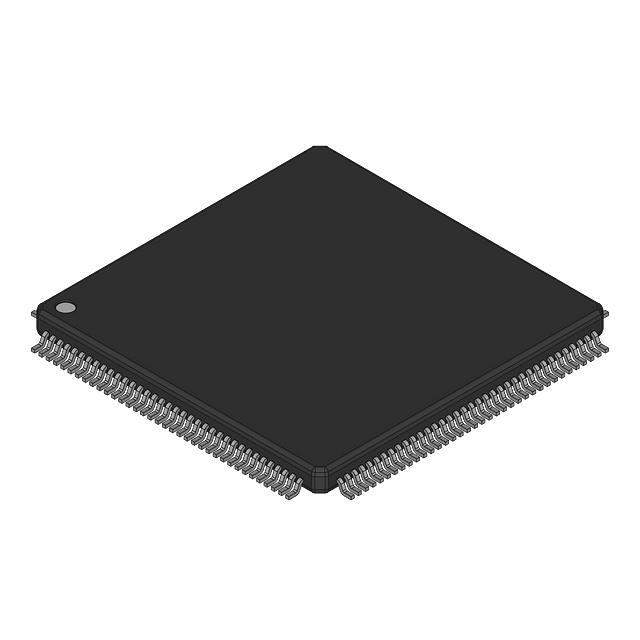

MC9S12XET256CAG Real Image MC9S12XET256CAG real image MC9S12XET256CAG label picture MC9S12XET256CAG Real Image1 MC9S12XET256CAG Real Image2 MC9S12XET256CAG Real Image3 MC9S12XET256CAG Real Image4 MC9S12XET256CAG Real Image5
MC9S12XET256CAG Real Image MC9S12XET256CAG real image MC9S12XET256CAG label picture MC9S12XET256CAG Real Image1 MC9S12XET256CAG Real Image2 MC9S12XET256CAG Real Image3 MC9S12XET256CAG Real Image4 MC9S12XET256CAG Real Image5
Same model may have multiple batches, images only for reference.

MC9S12XET256CAG

Part No MC9S12XET256CAG
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 256KB FLASH 144LQFP
Datasheet
MC9S12XET256CAG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor HCS12X
Part Core Size 16-Bit
Speed(Frequency) 50MHz
Number of I/O 119
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
Data RAM Size 16K x 8
Supply Voltage - Operating 1.72 V to 5.5 V
Data Converters A/D 24x12b
Oscillator Type External
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 144-LQFP (20x20)
Win Source Part Number 041536-MC9S12XET256CAG
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MC9S12XET256CAG CAD Model

Description

The NXP MC9S12XET256CAG is a 16-bit microcontroller that comes with a HCS12X core processor.

  • I/O Pins: 119
  • Program Memory Size: 256KB (256K x 8)
  • Program Memory Type: FLASH
  • EEPROM Size: 4K x 8
  • Data Converters: A/D 24x12b
  • Operating Speed: 50MHz
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Supply Voltage Range: 1.72 V to 5.5 V
  • Package: 144-LQFP (20x20)
  • Data RAM Size: 16K x 8
  • Popularity: Medium
  • Supply and Demand Status: Limited
