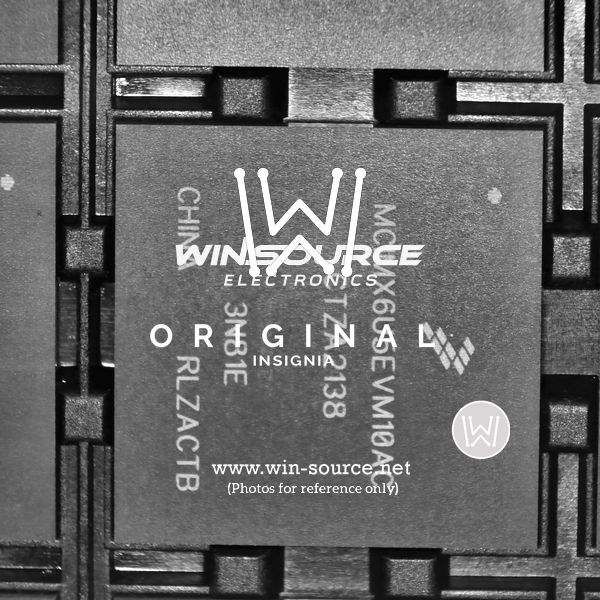

MCIMX6U5EVM10AC Real Image MCIMX6U5EVM10AC Real Image
Same model may have multiple batches, images only for reference.
MCIMX6U5EVM10AC Real Image MCIMX6U5EVM10AC Real Image
MCIMX6U5EVM10AC Real Image MCIMX6U5EVM10AC Real Image
Same model may have multiple batches, images only for reference.

MCIMX6U5EVM10AC

Part No MCIMX6U5EVM10AC
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX6DL 1.0GHZ 624MAPBGA / SOC i.MX 6DualLite ARM Cortex A9 0.04um Medical 624-Pin MAP-BGA Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor ARM Cortex-A9
Number of Cores/Bus Width 2 Core, 32-Bit
Speed(Frequency) 1.0GHz
Co-Processors/DSP Multimedia; NEON SIMD
RAM Controllers LPDDR2, LVDDR3, DDR3
Graphics Acceleration Yes
Display & Interface Controllers Keypad, LCD
Ethernet 10/100/1000 Mbps (1)
USB USB 2.0 + PHY (4)
Voltage - I/O 1.8V, 2.5V, 2.8V, 3.3V
Temperature Range - Operating -20°C to 105°C (TJ)
Security Features ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection

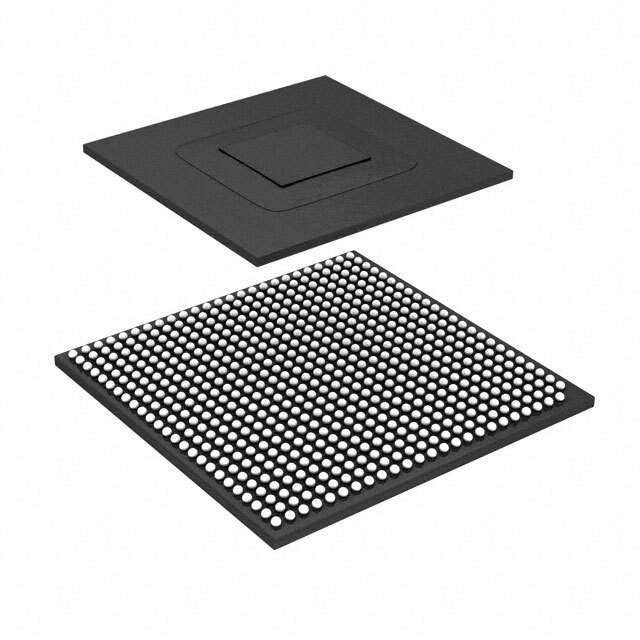

Case / Package 624-MAPBGA (21x21)
Additional Interfaces CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART
Win Source Part Number 137611-MCIMX6U5EVM10AC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name MCIMX6U
Introduction Date December 20, 2013
ECCN 5A992.c
Country of Origin China, Singapore, Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MCIMX6U5EVM10AC CAD Model

Description

The NXP 137611-MCIMX6U5EVM10AC is an integrated circuit with an ARM Cortex-A9 core processor.

  • Core Processor: ARM Cortex-A9
  • Cores: Two
  • Bus Width: 32-bit
  • Co-processors/DSP: Multimedia and NEON SIMD
  • RAM Controllers: LPDDR2, LVDDR3, and DDR3
  • Display and Interface Controllers: Keypad and LCD
  • USB: USB 2.0 + PHY (4)
  • Voltage for I/O: 1.8V, 2.5V, 2.8V, and 3.3V
  • Additional Interfaces: CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART
  • Package: 624-MAPBGA (21x21)
  • Speed: 1.0GHz
  • Operating Temperature Range: -20°C to 105°C (TJ)
  • Applications: Multimedia devices, automotive systems, and industrial control systems
