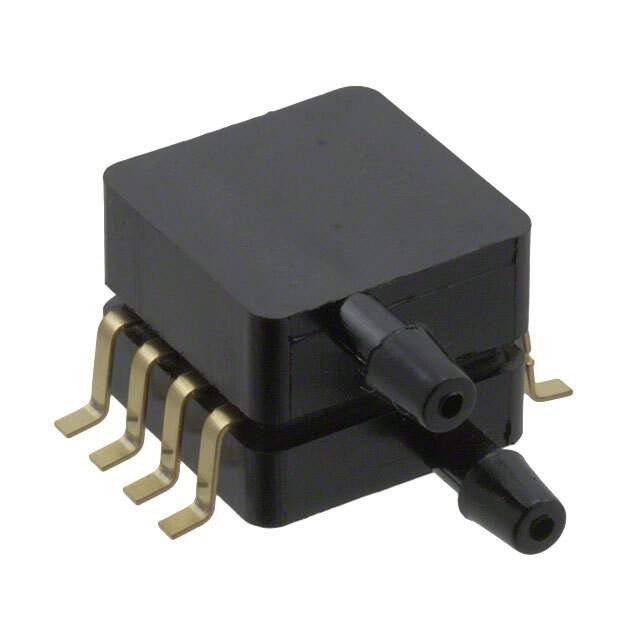

MPXV4006DP Real Image
Same model may have multiple batches, images only for reference.

MPXV4006DP

Part No MPXV4006DP
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE DUAL SMD 8-SOP / Pressure Sensor 0.2V to 4.8V 0kPa to 6kPa Differential 8-Pin SNSR Tray
Datasheet
MPXV4006DP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Active
Pressure Type Differential
Operating Pressure 0.87 PSI (6 kPa)
Output Type Analog Voltage
Output 0.2 V to 4.7 V
Accuracy ±5%
Supply Voltage - Operating 4.75 V to 5.25 V
Port Size Male - 0.13" (3.3mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 3.48 PSI (24 kPa)
Temperature Range - Operating -10°C to 60°C
Win Source Part Number 059499-MPXV4006DP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name MPXV4006D
Introduction Date January 15, 2002
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MPXV4006DP CAD Model

Description

The NXP MPXV4006DP is a differential pressure type temperature compensated analog voltage output type sensor.

  • Accuracy: ±5%
  • Operating Pressure Range: 0.87 PSI (6 kPa)
  • Supply Voltage: 4.75 V to 5.25 V
  • Operating Temperature Range: -10°C to 60°C
  • Status: Active
  • Popularity: High
  • Supply and Demand: Limited
  • Estimated EOL date: 2025
