The ADP3209CJCPZ is a highly efficient, multi-phase, synchronous buck switching regulator controller from ON Semiconductor. Designed with advanced power management in mind, this controller is specifically tailored for portable computing applications that require optimized power distribution and extended battery life.

Key Features and Benefits

• Multi-Phase Operation: The device supports multi-phase operation, which significantly improves thermal management and allows for better distribution of power, leading to enhanced system stability and performance.
• High-Efficiency: With its synchronous buck topology, the ADP3209CJCPZ achieves high efficiency, which is crucial for reducing heat generation and power loss in portable computing devices.
• Dynamic Voltage Positioning: This feature allows the regulator to automatically adjust the output voltage as a function of the load current, thereby maintaining optimal efficiency and performance under varying load conditions.
• Overvoltage Protection: The built-in overvoltage protection ensures that the connected components are safeguarded against potential damage due to unexpected voltage spikes.
• Power Saving Modes: The ADP3209CJCPZ supports various power-saving modes, which contribute to the extension of battery life in portable devices by reducing power consumption when full performance is not required.

Applications

This controller is ideal for use in a wide range of portable computing devices, including but not limited to:

• Notebooks and Ultrabooks
• Netbooks
• Tablet PCs

Technical Specifications

The ADP3209CJCPZ operates over a wide input voltage range, making it suitable for various battery technologies. It is designed to work with high-efficiency, 3-phase or 2-phase power schemes, providing a flexible solution for system designers.

Quality and Reliability

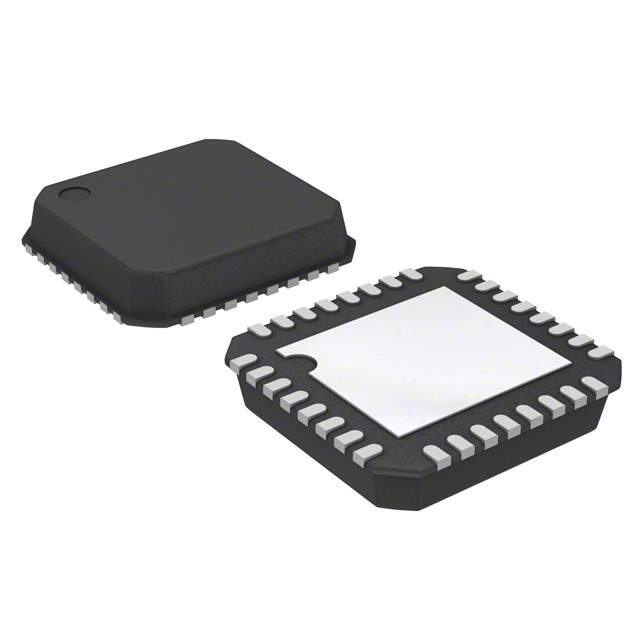

As with all ON Semiconductor products, the ADP3209CJCPZ is manufactured to the highest quality standards, ensuring reliability and performance in demanding computing environments. The device is available in a compact, lead-free package that is RoHS compliant, minimizing the environmental impact and meeting global regulatory requirements.
