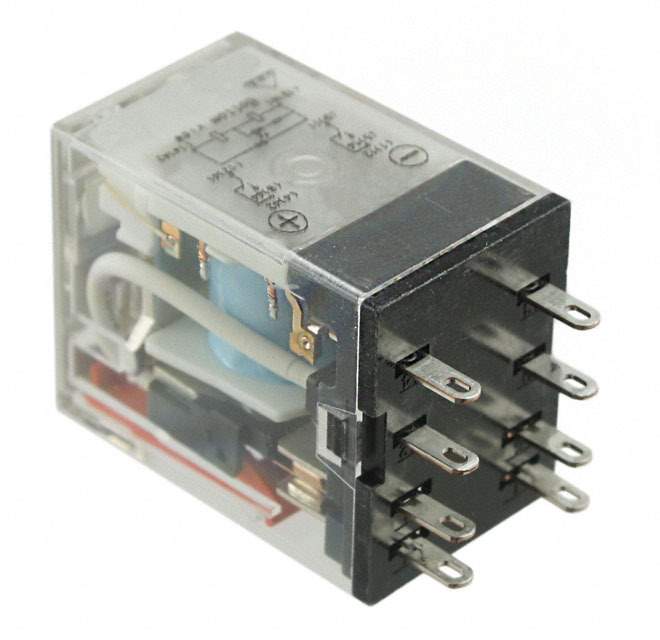

MY2N-D2 DC24 (S) Real Image
Same model may have multiple batches, images only for reference.

MY2N-D2 DC24 (S)

Part No MY2N-D2 DC24 (S)
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Automation and Safety
Series MY
Package Tray
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 37.7 mA
Coil Type Non Latching
Features Diode, Lighted Indicator
Termination Style Plug In
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -55°C ~ 70°C
Contact Material Silver (Ag)
Relay Type General Purpose
Coil Resistance 636 Ohms
Base Product Number MY2N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names Z2883,MY2ND2DC24(S),MY2N-D2-DC24(S)-ND,MY2N-D2-DC24(S),MY2ND2DC24S,MY2ND2 DC24 (S)
Standard Package 10
Win Source Part Number 1081349-MY2N-D2 DC24 (S)
Ultra Librarian 3D Model Ultra Librarian MY2N-D2 DC24 (S) CAD Model

Description

The MY2N-D2 DC24 (S) relay from Omron is a general-purpose, non-latching DPDT (2 Form C) relay with a switching voltage of up to 250VAC and 125VDC, and a contact rating of 5A.

  • Coil Voltage: 24VDC
  • Coil Resistance: 636 Ohms
  • Coil Current: 37.7 mA
  • Features: Diode, Lighted Indicator
  • Mounting: Socketable
  • Temperature Range: -55°C to 70°C
  • Release Time: 20ms
  • Operate Time: 20ms
  • Package: Tray
  • Standard Package: 10
