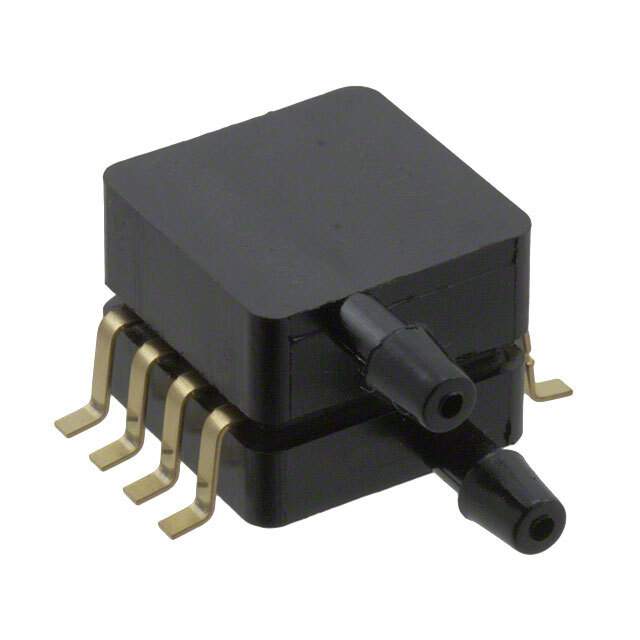

MPXV5100DP Real Image
Same model may have multiple batches, images only for reference.

MPXV5100DP

Part No MPXV5100DP
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description PRESSURE SENSOR GAUGE DUAL 8-SOP
Datasheet
MPXV5100DP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Active
Pressure Type Differential
Operating Pressure 14.5 PSI (100 kPa)
Output Type Analog Voltage
Output 0.2 V to 4.7 V
Accuracy ±2.5%
Supply Voltage - Operating 4.75 V to 5.25 V
Port Size Male - 0.13" (3.3mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 58.02 PSI (400 kPa)
Temperature Range - Operating -40°C to 125°C
Win Source Part Number 208792-MPXV5100DP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name MPXV5100DP
Introduction Date November 01, 2004
ECCN EAR99
Country of Origin Republic of Korea
Halogen Free Not Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian MPXV5100DP CAD Model

Description

The NXP MPXV5100DP is a differential pressure sensor that is temperature compensated and outputs an analog voltage ranging from 0.2 V to 4.7 V with an accuracy of ±2.5%.

  • Operating Pressure: 14.5 PSI (100 kPa)
  • Maximum Pressure: 58.02 PSI (400 kPa)
  • Port Style: Dual port with a male 0.13" (3.3mm) tube
  • Termination: PCB
  • Application: Sensors and transducers
  • Popularity: High
  • Origin: Republic of Korea
  • Halogen-Free Compliance: Not compliant
  • Estimated End-of-Life Date: 2022
