Same model may have multiple batches, images only for reference.

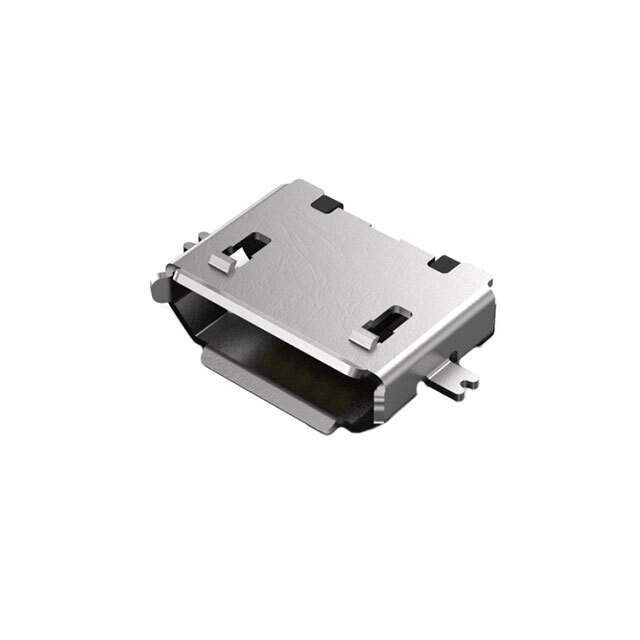

USB3070-30-A Real Image
Same model may have multiple batches, images only for reference.

USB3070-30-A

Part No USB3070-30-A
Manufacturer GCT
Catalog USB, DVI, HDMI Connectors
Description MICRO B SKT, MID MOUNT-SMT, R/A,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 7 Weeks
Features USB - micro B USB 2.0 Receptacle Connector 5 Position Board Edge, Cutout; Surface Mount, Right Angle
Manufacturer GCT
Series USB3070
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Board Edge, Cutout; Surface Mount, Right Angle
Family Name USB3070
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2073-USB3070-30-ATR, 2073-USB3070-30-ADKR, 2073-USB3070-30-ACT
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 938350-USB3070-30-A
Ultra Librarian 3D Model Ultra Librarian USB3070-30-A CAD Model

Description

The GCT 938350-USB3070-30-A is a USB3070 series electronic component that has a surface mount, right angle, 5 position board edge, cutout, micro B USB 2.0 receptacle connector. It comes in a reel - TR package and has a family name of USB3070.

  • Manufacturer: GCT
  • Product Name: 938350-USB3070-30-A
  • Series: USB3070
  • Type: Micro B USB 2.0 Receptacle Connector
  • Mounting: Surface Mount, Right Angle
  • Positions: 5
  • Package: Reel - TR
  • Family Name: USB3070
  • Estimated Production Lead Time: 7 weeks
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • REACH: Unaffected
