Same model may have multiple batches, images only for reference.

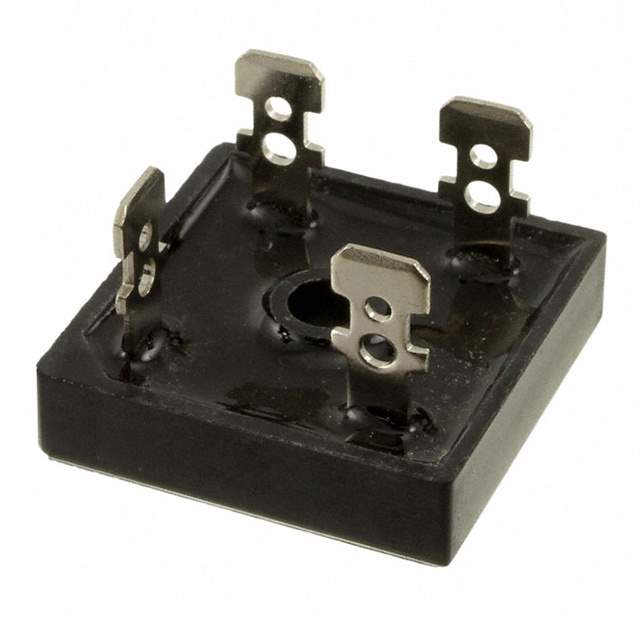

KBPC5001T Real Image
Same model may have multiple batches, images only for reference.

KBPC5001T

Part No KBPC5001T
Manufacturer GeneSiC Semiconductor
Catalog Bridge Rectifiers
Description DIODE BRIDGE 100V 50A KBPC-T/W / Diode Rectifier Bridge Single 100V 50A 4-Pin Case KBPC-T
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 100V
Current - Average Rectified (Io) 50A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 25A
Current - Reverse Leakage @ Vr 5μA @ 100V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Chassis Mount
Package 4-Square, KBPC-T
Manufacturer Package KBPC
Win Source Part Number 771021-KBPC5001T
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Family Name KBPC5001T
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian KBPC5001T CAD Model

Description

The GeneSiC Semiconductor KBPC5001T is a single-phase standard diode manufactured by GeneSiC Semiconductor.

  • Voltage Peak Reverse: 100V
  • Voltage Forward: 1.1V @ 25A
  • Average Rectified Current: 50A
  • Reverse Leakage Current: 5μA @ 100V
  • Operating Temperature: -55°C to 150°C (TJ)
  • Mounting Type: Chassis
  • Family: KBPC
  • Category: Discrete Semiconductor Products
  • Alternative Parts: SB351M, SB351G, SB351, MB501
  • ECCN: EAR99
  • Manufacturing Location: China
  • EOL Date: 2027
  • Packaging: 50 pieces
