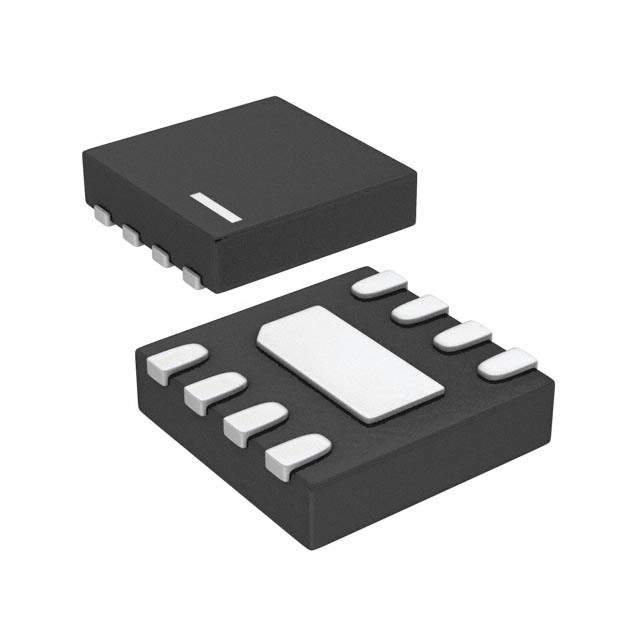

The LTC6256IKC#TRPBF-ES is a cutting-edge operational amplifier (op-amp) from Linear Technology, designed to deliver high-speed performance with minimal power consumption. This particular model is an engineering sample (ES) version, which allows designers to evaluate the performance of the op-amp in their applications before the final product is released.

Key Features

• High Gain Bandwidth Product: The LTC6256IKC#TRPBF-ES boasts a gain bandwidth product of 6.5MHz, which enables it to handle high-speed signals without significant distortion, making it an excellent choice for fast signal conditioning applications.
• Low Power Operation: With a supply current of just 650µA, this op-amp is optimized for battery-powered and portable applications where power efficiency is critical.
• Rail-to-Rail Output: The device features a rail-to-rail output stage, which allows the output to swing close to the supply rails, maximizing the dynamic range in low supply voltage applications.
• Wide Supply Range: It operates with a supply voltage range from 1.8V to 5.25V, providing flexibility in various supply environments and compatibility with other low voltage components.
• CMOS Input: The op-amp has CMOS inputs that offer high impedance, which reduces the loading effect on the source circuit and maintains signal integrity.

Applications

The LTC6256IKC#TRPBF-ES is suitable for a wide range of applications, including:

• Active filters
• ADC buffer amplifiers
• Portable instrumentation
• Data acquisition systems
• Medical devices
• Automotive sensors and controls

Quality and Reliability

As an engineering sample, the LTC6256IKC#TRPBF-ES is built to the same high standards of quality and reliability as all Linear Technology products. It is designed to meet the rigorous demands of industrial, automotive, and consumer electronics markets, providing designers with confidence in its performance and durability.
