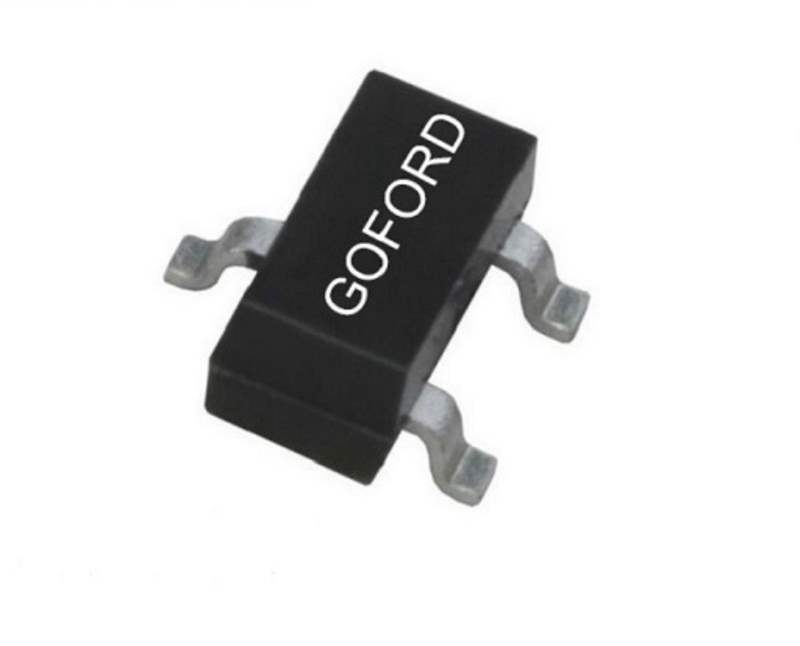

Same model may have multiple batches, images only for reference.

06N06L

Get a Quote

Part No	06N06L
Manufacturer	Goford Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	N60V,RD(MAX)<42M@10V,RD(MAX)<46M
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Goford Semiconductor
Series	-
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	5.5A
Rds On (Max) @ Id, Vgs	42mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.4 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	765 pF @ 30 V
Power Dissipation (Max)	960mW
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3L
Package / Case	TO-236-3, SC-59, SOT-23-3
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1376851-06N06L
Package	Tape & Reel (TR)
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	5.5A
Rds On (Max) @ Id, Vgs	42mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	765 pF @ 30 V
Power Dissipation (Max)	960mW
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3
Package / Case	TO-236-3, SC-59, SOT-23-3
Ultra Librarian 3D Model	Ultra Librarian 06N06L CAD Model

Alternative Products

Description

The 06N06L is an N-channel MOSFET transistor manufactured by Goford Semiconductor. It is designed for discrete semiconductor applications, specifically for use as a single FET.

Package: Tape and Reel, TO-236-3 (SOT-23-3)
Temperature Range: -55°C to 150°C
Drain to Source Voltage (Vdss): 60V
Continuous Drain Current (Id): 5.5A
On-Resistance (Rds On): 42mOhm
