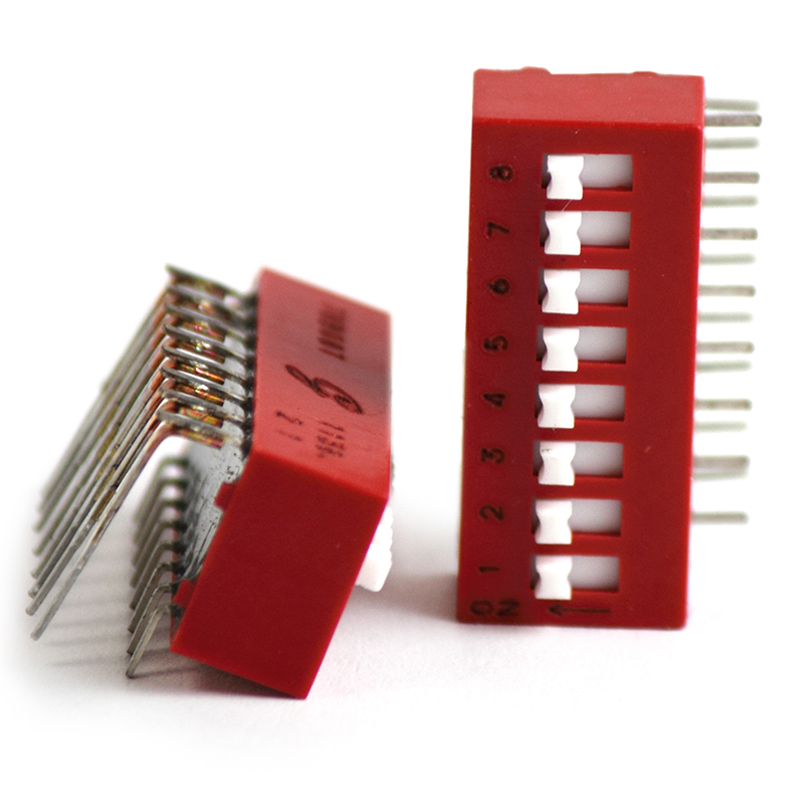

Same model may have multiple batches, images only for reference.
76PSB07T Grayhill Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

76PSB07T

Part No 76PSB07T
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 0.15A 30V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SPST
Number of Positions 7
Current Rating (Amps) 150mA
Voltage Rating 30VDC
Actuator Type Piano
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.301" (7.65mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1552780-76PSB07T
Ultra Librarian 3D Model Ultra Librarian 76PSB07T CAD Model

Description

N
