Part No 109R
Manufacturer Hammond Manufacturing
Catalog Audio Transformers

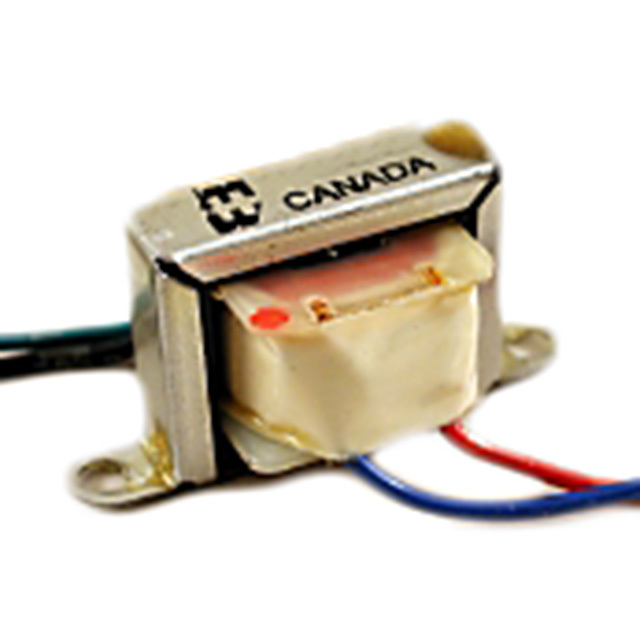

Description AUDIO XFMR 10KCT / 1.5KCT TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Turns Ratio - Primary 5.16:1
Impedance - Primary (Ohms) 10kCT
Impedance - Secondary (Ohms) 1.5kCT
DC Resistance (DCR) - Primary 384Ohm
DC Resistance (DCR) - Secondary 58Ohm
Transformer Type Miniature Epoxy Potted
Frequency Range 300Hz ~ 50kHz
Frequency Response ±1.5dB
Voltage - Isolation 100VRMS
Power Level 2W
Mounting Type Through Hole
Size / Dimension 1.315" L x 0.930" W (33.40mm x 23.62mm)
Height - Seated (Max) 0.920" (23.37mm)
Termination Style PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1511026-109R
Ultra Librarian 3D Model Ultra Librarian 109R CAD Model
