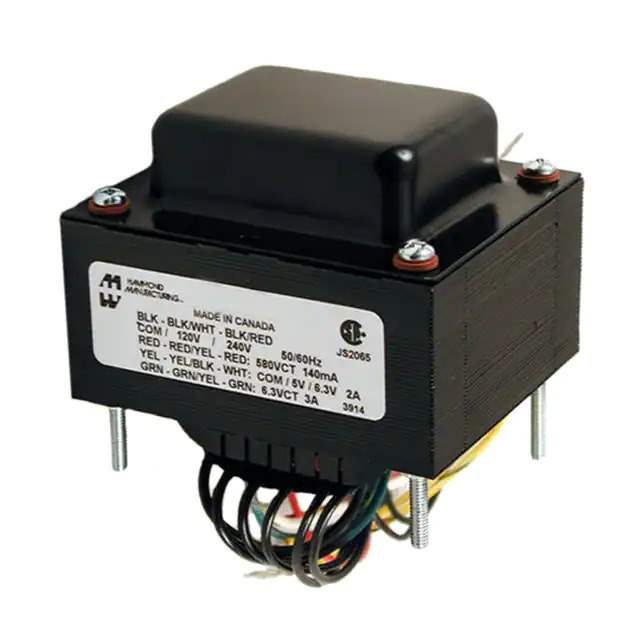

290TX Real Image
Same model may have multiple batches, images only for reference.

290TX

Part No 290TX
Manufacturer Hammond Manufacturing
Catalog Audio Transformers
Description TRANSF TUBE GUITAR AMP POWER / Impedance Primary Ohms Impedance Secondary Ohms Audio Transformer Chassis Mount
Datasheet
290TX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Audio Transformers
Mfr Hammond Manufacturing
Series 290
Package Bulk
Product Status Active
DC Resistance (DCR) - Primary 1.18Ohm
DC Resistance (DCR) - Secondary 70mOhm, 80mOhm, 6.14Ohm, 46.16Ohm
Voltage - Isolation 120/240VAC
Mounting Type Chassis Mount
Size / Dimension 3.438" L x 4.300" W (87.33mm x 109.22mm)
Height - Seated (Max) 4.188" (106.38mm)
Termination Style Wire Leads
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 920334-290TX
Ultra Librarian 3D Model Ultra Librarian 290TX CAD Model

Description

The 920334-290TX is an audio transformer from Hammond Manufacturing.

  • Series: 290
  • Application: Audio
  • Termination: Wire Leads
  • Package: Bulk
  • Size: 3.438" L x 4.300" W (87.33mm x 109.22mm)
  • Max Height: 4.188" (106.38mm)
  • Voltage Isolation: 120/240VAC
  • Mounting: Chassis Mount
  • Primary DCR: 1.18 Ohms
  • Secondary DCR: 70mOhm, 80mOhm, 6.14Ohm, 46.16Ohm
