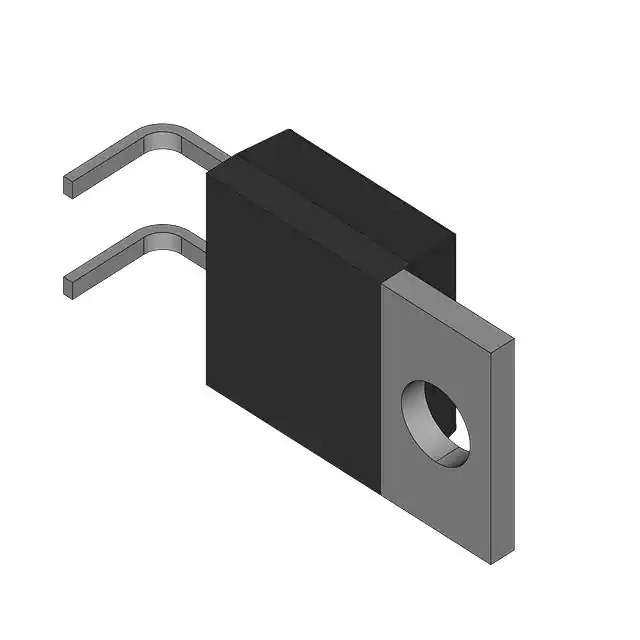

MUR1510 Real Image
Same model may have multiple batches, images only for reference.

MUR1510

Part No MUR1510
Manufacturer Harris Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 15A TO220-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Harris Corporation
Series SWITCHMODE™
Package Tube
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 10 µA @ 100 V
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220-2
Operating Temperature - Junction -65°C ~ 175°C
Standard Package 174 pcs
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 645804-MUR1510
Ultra Librarian 3D Model Ultra Librarian MUR1510 CAD Model

Description

The MUR1510 is a single rectifier diode from the SWITCHMODE™ series.

  • Series: SWITCHMODE™
  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 15A
  • Forward Voltage: 1.05V @ 15A
  • Reverse Recovery Time: 35ns
  • Current Leakage: 10μA @ 100V
  • Temperature Range: -65°C to 175°C
  • Package: TO-220-2
  • Mounting: Through-hole
  • Package Size: 174 pieces
  • Manufacturer: Harris Corporation
  • Status: Obsolete
