Same model may have multiple batches, images only for reference.

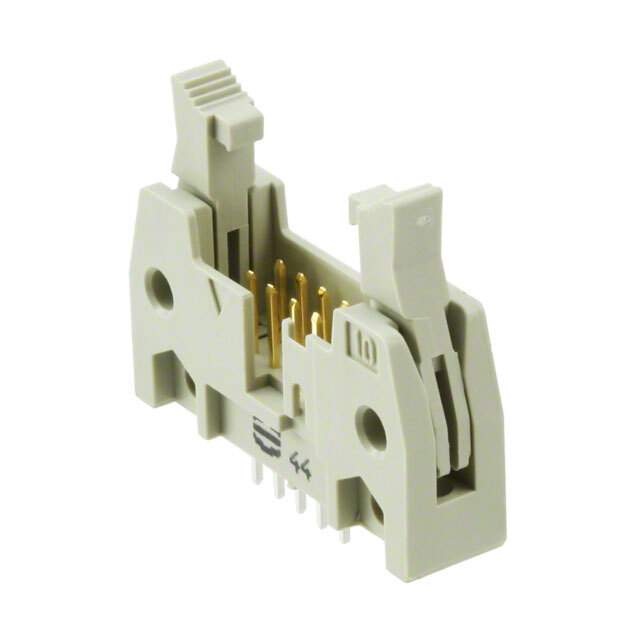

09185107904 Real Image
Same model may have multiple batches, images only for reference.

09185107904

Part No 09185107904
Manufacturer HARTING
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Datasheet
09185107904 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr HARTING
Series SEK
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.114" (2.90mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.681" (17.30mm)
Contact Shape Square
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Gray
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904787-09185107904
Ultra Librarian 3D Model Ultra Librarian 09185107904 CAD Model

Description

The 904787-09185107904 is a rectangular connector header from HARTING.

  • Series: SEK
  • Positions: 10
  • Gender: Male
  • Contact Type: Pin
  • Features: Keying Slot, Mounting Flange
  • Application: Board-to-Cable/Wire
  • Mounting Type: Through-Hole
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Insulation Color: Gray
  • Temperature Range: -55°C to 125°C
  • Packaging: Tray (100 pieces)
  • Product Status: Active
  • California Prop 65: Not Applicable
