09300242298

Part No 09300242298
Manufacturer HARTING
Catalog Heavy Duty Connectors - Housings, Hoods, Bases

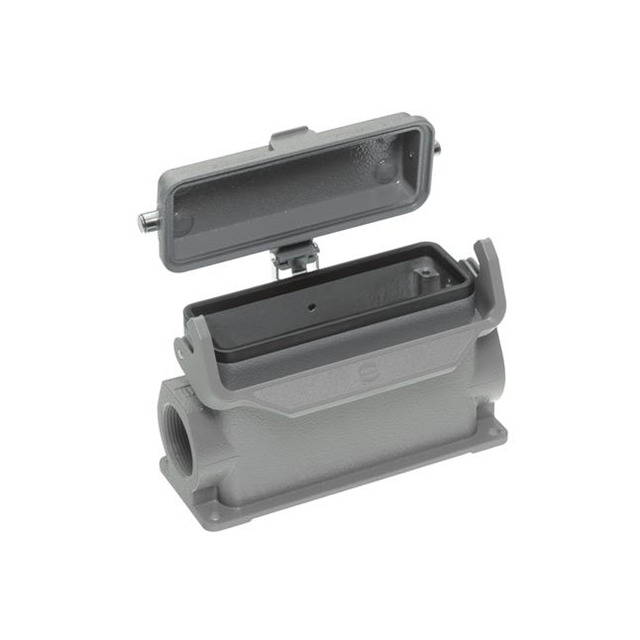

Description CONN BASE SIDE ENTRY SZ24B PG29
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Base - Box Mount
Style Side Entry
Size 24B
Lock Location Locking Clip (1) on Base Bottom
Thread Size PG29
Size / Dimension 5.669" L x 2.244" W x 3.181" H (144.00mm x 57.00mm x 80.80mm)
Housing Color Gray
Features Cover, Feed Through
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1633560-09300242298
Ultra Librarian 3D Model Ultra Librarian 09300242298 CAD Model
