Same model may have multiple batches, images only for reference.

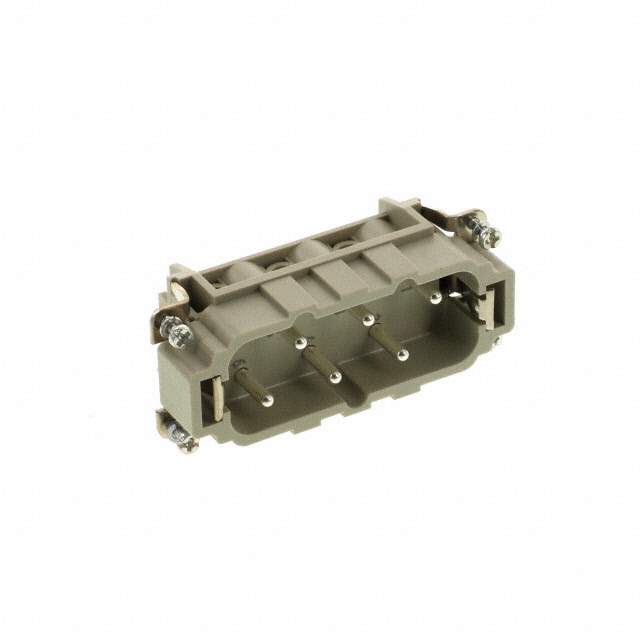

09310062601 Real Image
Same model may have multiple batches, images only for reference.

09310062601

Part No 09310062601
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description INSERT MALE 6POS+1GND SCREW
Datasheet
09310062601 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Inserts, Modules
Mfr HARTING
Series Han® HsB
Package Bulk
Product Status Active
Connector Type Insert
Gender Male
Number of Positions 6+Ground
Size 16B
Termination Style Screw
Voltage Rating 600V
Current Rating (Amps) 35A
Temperature Range - Operating -40°C ~ 125°C
Color Gray
Housing Material Polycarbonate (PC)
Contact Material Copper Alloy
Contact Finish Silver
Material Flammability Rating UL94 V-0
Base Product Number 09310006
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 846976-09310062601
Ultra Librarian 3D Model Ultra Librarian 09310062601 CAD Model

Description

The Han® HsB Heavy Duty Connector Insert is a high-quality electronic component designed for heavy-duty applications manufactured by HARTING.

  • Voltage Rating: 600V
  • Current Rating: 35A
  • Positions: 6+Ground
  • Termination Style: Screw
  • Contact Material: Copper Alloy (Silver Finish)
  • Housing Material: Polycarbonate (PC), UL94 V-0
  • Color: Gray
  • Package: Bulk (1 piece)
  • Size: 16B
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
