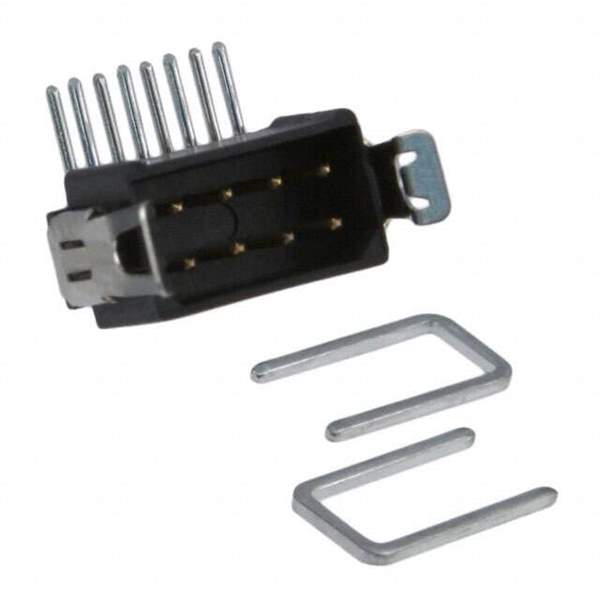

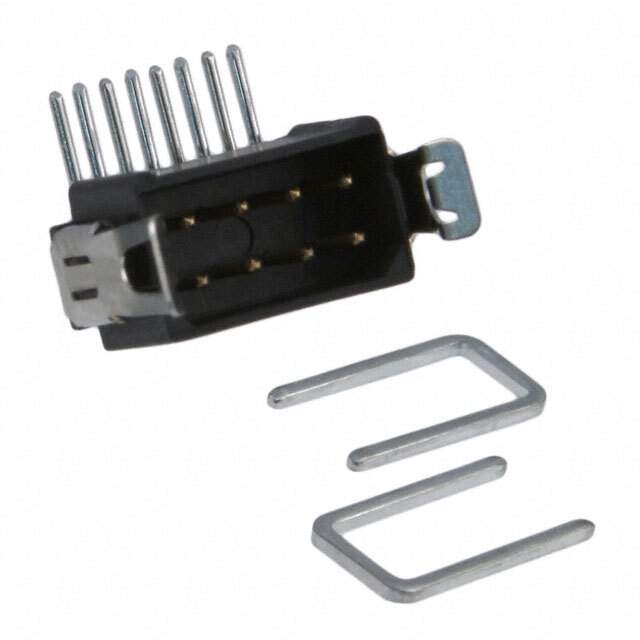

M80-8510842 Real Image
Same model may have multiple batches, images only for reference.

M80-8510842

Part No M80-8510842
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 2MM / Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)
Datasheet
M80-8510842 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Harwin Inc.
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.235" (5.97mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 29.5µin (0.75µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Features Strain Relief Clips
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.2A
Voltage Rating 800V
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number M80-851
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 952-1129-5,M808510842
Standard Package 21
Win Source Part Number 1332375-M80-8510842
Ultra Librarian 3D Model Ultra Librarian M80-8510842 CAD Model

Description

Harwin Inc.'s M80-8510842 is a rectangular connector header designed for board-to-board or cable applications.

  • Positions: 8
  • Pitch: 0.079" (2.00mm)
  • Mounting: Through-hole
  • Orientation: Right-angle
  • Voltage Rating: 800V
  • Insulation Material: Polyphenylene sulfide (PPS) glass-filled
  • Contact Shape: Circular
  • Shrouding: 4 walls
  • Contact Finish (Mating): Gold
  • Contact Finish Thickness (Mating): 29.5µin (0.75µm)
  • Post Finish: Tin
  • Post Finish Thickness: 118.1µin (3.00µm)
  • Package: Tube
  • Units per Tube: 21
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
