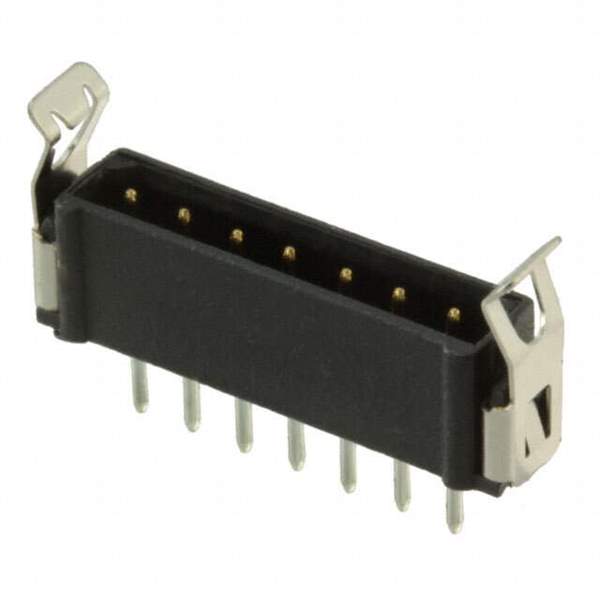

M80-8770722

Name: M80-8770722
Brand: Harwin Inc.
SKU: 1349369
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	M80-8770722
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 7POS 2MM / Connector Header Through Hole 7 position 0.079" (2.00mm)
Datasheet	M80-8770722 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate L-Tek
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	7
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.219" (5.56mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin-Lead
Contact Material	Phosphor Bronze
Insulation Material	Polyester, Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800V
Mated Stacking Heights	7.23mm, 10.2mm, 13.46mm
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-877
Standard Package	14
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349369-M80-8770722
Ultra Librarian 3D Model	Ultra Librarian M80-8770722 CAD Model

Alternative Products

Description

The Datamate L-Tek series male pin header is a rectangular connector with 7 positions.

Connector Type: Header, Male Pins
Contact Type: Square Pin
Pitch - Mating: 0.079" (2.00mm)
Number of Positions: 7
Number of Rows: 1
Row Spacing - Mating: -
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Finish Thickness - Post: 118.1µin (3.00µm)
Insulation Material: Polyester, Glass Filled
Insulation Color: Black
Shrouding: 4 Wall
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.219" (5.56mm)
Mounting Type: Through Hole
Fastening Type: Latch Lock
Mated Stacking Heights: 7.23mm, 10.2mm, 13.46mm
Current Rating: 2.2A
Operating Temperature: -55°C ~ 125°C
Manufacturer: Harwin Inc.
Other Names: M80-8770722
