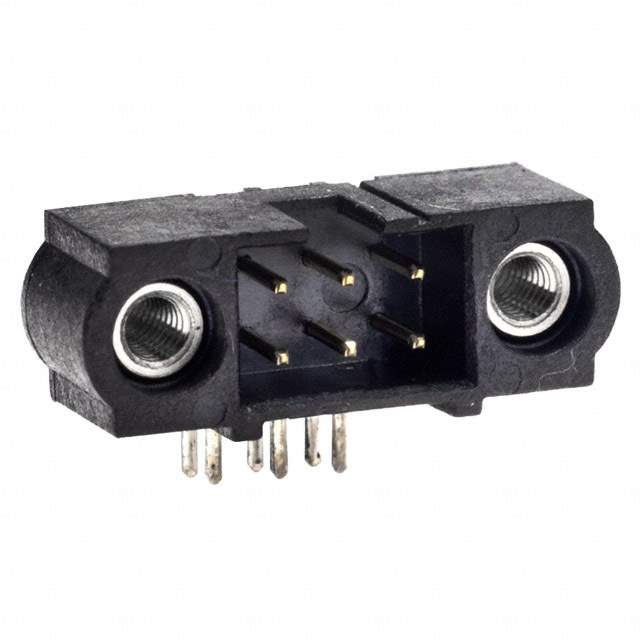

M80-5300642 Real Image
Same model may have multiple batches, images only for reference.

M80-5300642

Part No M80-5300642
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 2MM
Datasheet
M80-5300642 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features Connector Header Through Hole, Right Angle 6 position 0.079" (2.00mm)
Manufacturer Harwin Inc.
Series Datamate J-Tek
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole, Right Angle
Family Name M80-530
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 952-1016-5, M805300642
Quantity per package 16
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924984-M80-5300642
Ultra Librarian 3D Model Ultra Librarian M80-5300642 CAD Model

Description

The Datamate J-Tek Connector Header from Harwin Inc. is a through-hole, right angle 6-position connector with a pitch of 0.079 inches (2.00mm).

  • Type: Through-hole, right angle
  • Positions: 6
  • Pitch: 0.079 inches (2.00mm)
  • Operating Temperature Range: -55°C to 125°C
  • Package: Tube
  • Family Name: M80-530
  • Category: Connector
  • Supply and Demand Status: Balanced
  • Quantity per Package: 16
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 13 weeks
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Other Part Numbers: 952-1016-5 and M805300642
