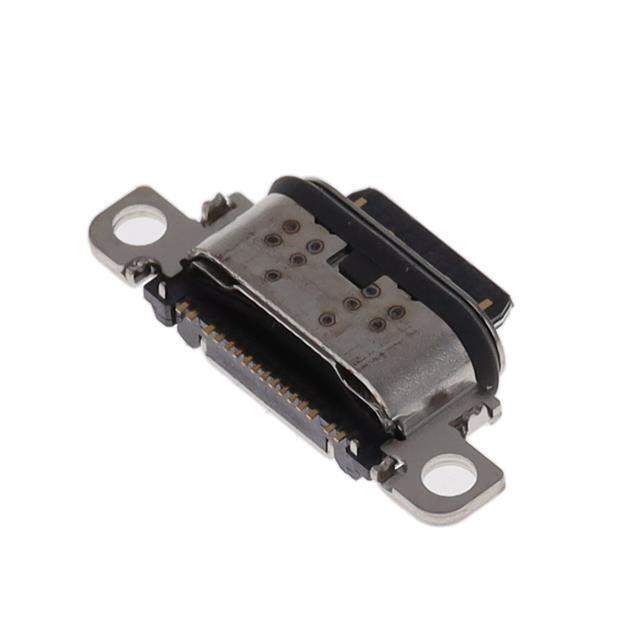

CX90MW6-16P Real Image
Same model may have multiple batches, images only for reference.

CX90MW6-16P

Part No CX90MW6-16P
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCP USB C R/A MID MNT IP X8 / USB-C (USB TYPE-C) Receptacle Connector 24 Position Surface Mount, Right Angle
Datasheet
CX90MW6-16P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Hirose Electric Co Ltd
Series CX
Package Tape & Reel
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Mounting Type Surface Mount, Right Angle
Mounting Feature Flange, Horizontal
Termination Solder
Temperature Range - Operating -40°C ~ 105°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.25A
Voltage - Rated 48VAC/DC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 26-CX90MW6-16PTR,26-CX90MW6-16PDKR,26-CX90MW6-16PCT
Standard Package 1,500
Win Source Part Number 1171648-CX90MW6-16P
Ultra Librarian 3D Model Ultra Librarian CX90MW6-16P CAD Model

Description

The CX90MW6-16P is a USB-C (USB TYPE-C) receptacle connector, designed for use in various applications. CX90MW6-16P is a USB-C (USB TYPE-C) receptacle connector.

  • Contact Finish: Gold
  • Packaging: Tape & reel
  • Number of Contacts: 24
  • Gender: Receptacle
  • Shielded: Yes
  • Material Flammability Rating: UL94 V-0
  • Voltage Rating: 48VAC/DC
  • Current Rating: 0.25A and 1.25A
  • Mounting Feature: Flange, Horizontal
  • Mating Cycle: 10,000
  • Mounting: Surface Mount, Right Angle
  • Temperature Range: -40°C to 105°C
  • Shell Material: Steel
  • Shielding Material: Stainless
