Same model may have multiple batches, images only for reference.

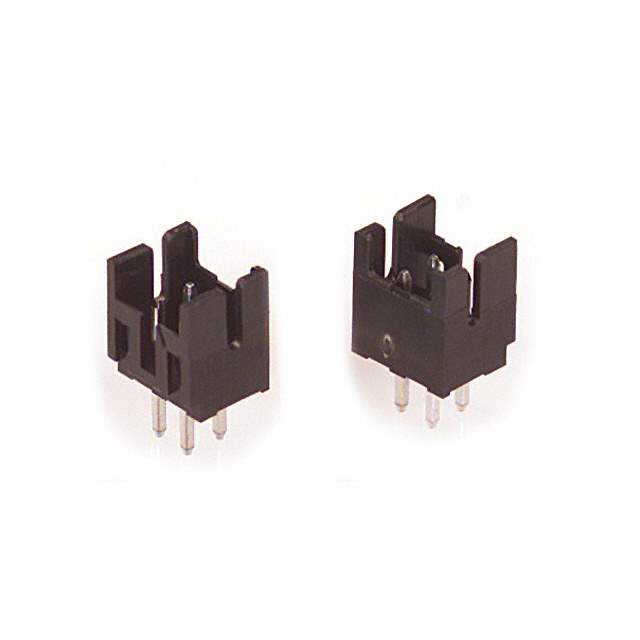

DF11-4DP-2DSA(24) Real Image
Same model may have multiple batches, images only for reference.

DF11-4DP-2DSA(24)

Part No DF11-4DP-2DSA(24)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2MM
Datasheet
DF11-4DP-2DSA(24) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 26 Weeks
Features Connector Header Through Hole 4 position 0.079" (2.00mm)
Manufacturer Hirose Electric Co Ltd
Series DF11
Package Tube
Operating Temperature Range -30°C ~ 85°C
Mounting Through Hole
Family Name DF11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number *DF11-4DP-2DSA(24), 543-0517-5-24, DF114DP2DSA24, H10229
Quantity per package 81
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916910-DF11-4DP-2DSA(24)
Ultra Librarian 3D Model Ultra Librarian DF11-4DP-2DSA(24) CAD Model

Description

The Hirose Electric Co Ltd DF11-4DP-2DSA(24) is a 4-position connector header in a through-hole mounting package.

  • Positions: 4
  • Mounting: Through-Hole
  • Series: DF11
  • Pitch: 2.00mm
  • Operating Temperature Range: -30°C to 85°C
  • Packaging: Tube
  • Quantity per Package: 81
  • Popularity: Popular
  • Supply and Demand Status: Balance
  • Estimated Production Lead Time: 26 weeks
