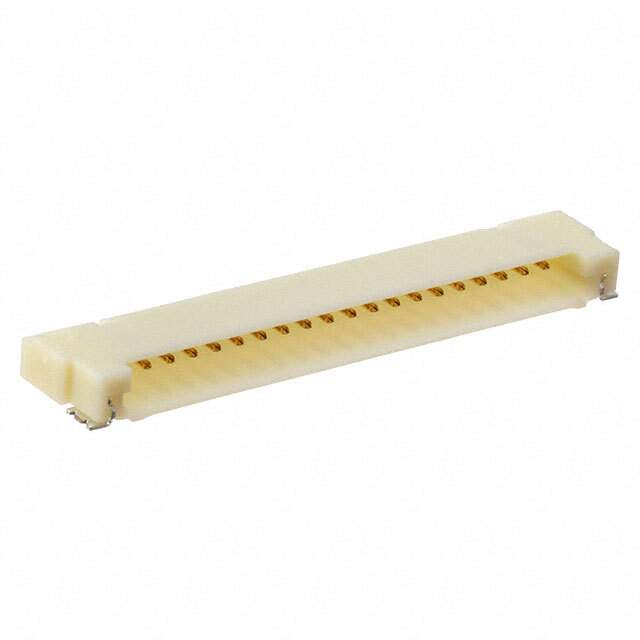

DF14-20P-1.25H(56) Real Image
Same model may have multiple batches, images only for reference.

DF14-20P-1.25H(56)

Part No DF14-20P-1.25H(56)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 20POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features Connector Header Surface Mount, Right Angle 20 position 0.049" (1.25mm)
Manufacturer Hirose Electric Co Ltd
Series DF14
Package Reel - TR
Operating Temperature Range -35°C ~ 85°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H125764DKR, DF14-20P-1.25H(56)-ND, H125764TR, 538-0089-8-56, H125764CT
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 846329-DF14-20P-1.25H(56)
Ultra Librarian 3D Model Ultra Librarian DF14-20P-1.25H(56) CAD Model

Description

The Hirose Electric Co Ltd DF14 series connector header is a surface mount, right angle connector with 20 positions and a pitch of 1.25mm.

  • Mounting Type: Surface Mount
  • Orientation: Right Angle
  • Number of Positions: 20
  • Pitch: 1.25mm
  • Operating Temperature: -35°C to 85°C
  • Package: Reel
  • Standard Package Quantity: 1000 units
  • Manufacturer: Hirose Electric Co Ltd
