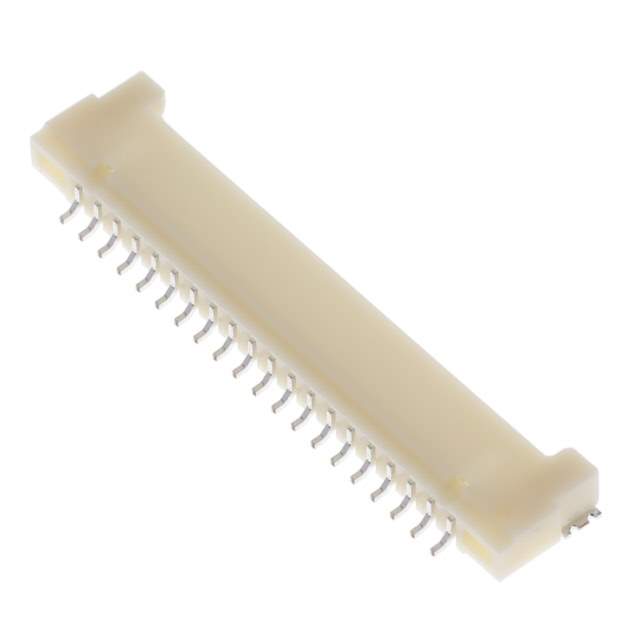

DF14A-20P-1.25H(52) Real Image1 DF14A-20P-1.25H(52) Real Image2
Same model may have multiple batches, images only for reference.
DF14A-20P-1.25H(52) Real Image1 DF14A-20P-1.25H(52) Real Image2
DF14A-20P-1.25H(52) Real Image1 DF14A-20P-1.25H(52) Real Image2
Same model may have multiple batches, images only for reference.

DF14A-20P-1.25H(52)

Part No DF14A-20P-1.25H(52)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 20POS 1.25MM / Connector Header Surface Mount, Right Angle 20 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF14
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 20
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.087" (2.20mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.94µin (0.100µm)
Contact Finish - Post Gold
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150VAC
Mated Stacking Heights -
Contact Finish Thickness - Post 3.94µin (0.100µm)
Applications -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,000 pcs
Win Source Part Number 1381874-DF14A-20P-1.25H(52)
Ultra Librarian 3D Model Ultra Librarian DF14A-20P-1.25H(52) CAD Model

Description

The DF14A-20P-1.25H(52) is a header connector from the DF14 series. DF14A-20P-1.25H(52) is from Hirose Electric Co Ltd.

  • Number of Positions: 20
  • Features: Solder Retention
  • Type: Header, Shrouded
  • Mounting Type: Surface Mount
  • Pitch: 1.25mm
  • Contact Material: Brass
  • Voltage Rating: 150VAC
  • Operating Temperature: -35°C ~ 85°C
