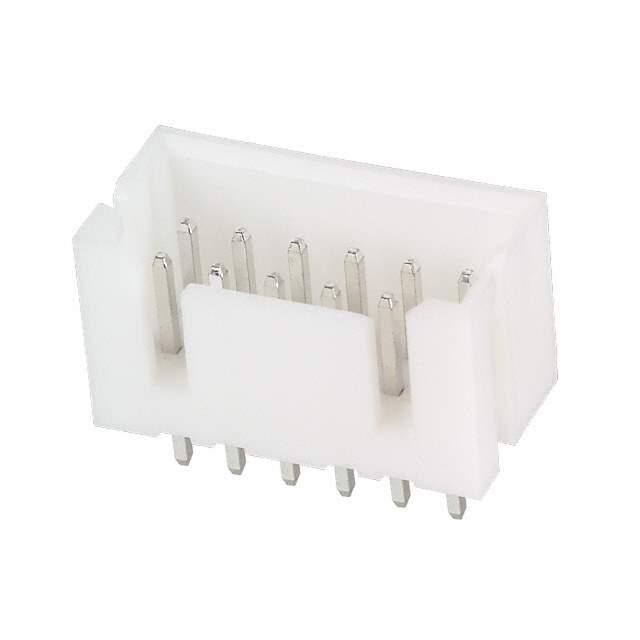

DF1BZ-12DP-2.5DSA

Name: DF1BZ-12DP-2.5DSA
Brand: Hirose Electric Co Ltd
SKU: 1224478
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF1BZ-12DP-2.5DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Circular Connectors - Housings
Description	CONN HEADER VERT 12POS 2.5MM / Connector Header Through Hole 12 position 0.098" (2.50mm)
Datasheet	DF1BZ-12DP-2.5DSA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF1B
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.098" (2.50mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.177" (4.50mm)
Contact Length - Post	0.142" (3.60mm)
Overall Contact Length	0.417" (10.60mm)
Insulation Height	0.374" (9.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Keying Slot
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	White
Voltage Rating	250V
Mated Stacking Heights	14mm
Base Product Number	DF1B
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	DF1BZ12DP25DSA,*DF1BZ-12DP-2.5DSA,H11046,541-2021-8-00
Standard Package	100
Win Source Part Number	1224478-DF1BZ-12DP-2.5DSA
Ultra Librarian 3D Model	Ultra Librarian DF1BZ-12DP-2.5DSA CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF1BZ-12DP-2.5DSA connector is a rectangular header connector with 12 male pins.

Series: DF1B
Design: Shrouded 4 Wall
Pitch: 0.098 inches (2.5mm)
Connection Type: Board to Cable/Wire
Voltage Rating: 250V
Insulation Material: Polyamide (PA) and Nylon
Contact Material: Brass
Contact Finish: Tin
Operating Temperature: -35°C to 85°C
Flammability Rating: UL94 V-0
Packaging: Bulk
Standard Package: 100 units
