Same model may have multiple batches, images only for reference.

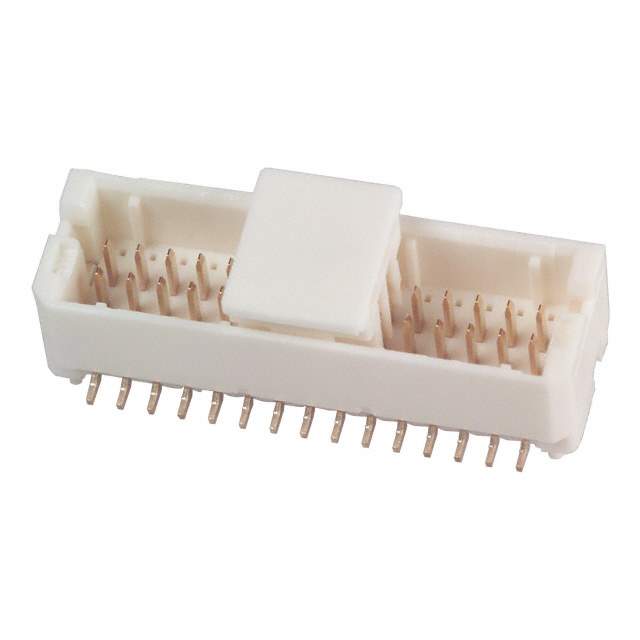

DF20F-30DP-1V(56) Real Image
Same model may have multiple batches, images only for reference.

DF20F-30DP-1V(56)

Part No DF20F-30DP-1V(56)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 30POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features Connector Header Surface Mount 30 position 0.039" (1.00mm)
Manufacturer Hirose Electric Co Ltd
Series DF20
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -35°C ~ 85°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number DF20F30DP1V56, 686-0034-8-56, H10728TR, H10728CT, H10728DKR, *DF20F-30DP-1V(56)
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916978-DF20F-30DP-1V(56)
Ultra Librarian 3D Model Ultra Librarian DF20F-30DP-1V(56) CAD Model

Description

The Hirose Electric Co Ltd DF20F-30DP-1V(56) is a surface mount connector header with 30 positions and a pitch of 0.039" (1.00mm).

  • The product has an operating temperature range of: -35°C to 85°C
  • And is an: obsolete product
  • The product's Win Source Part Number is: 916978-DF20F-30DP-1V(56)
  • And it belongs to the: DF20 series
  • The connector is an: ECCN EAR99 product
  • With a quantity per package of: 1000
