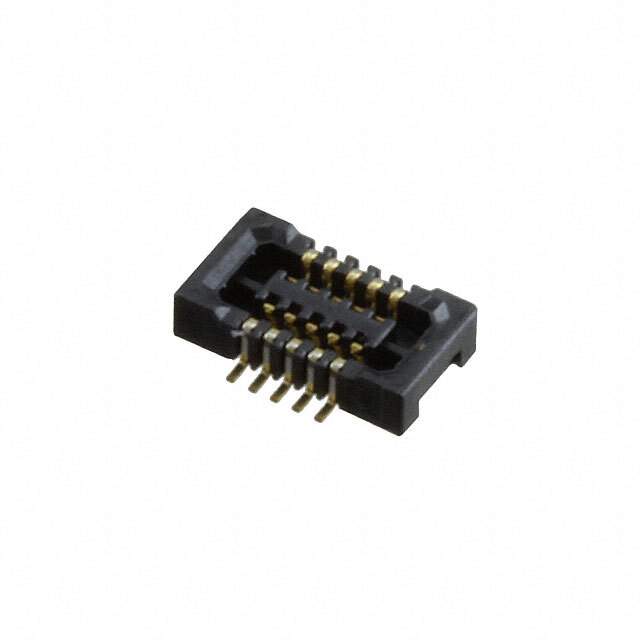

DF37NB-10DS-0.4V(51)

Part No DF37NB-10DS-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 10POS 0.4MM SMD GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 10
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2μin (0.05μm)
Mated Stacking Heights 0.98mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 1032981-DF37NB-10DS-0.4V(51)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian DF37NB-10DS-0.4V(51) CAD Model

Description

DF37NB-10DS-0.4V(51) from Hirose Electric Co Ltd is a compact rectangular receptacle connector designed for high-density board-to-board interconnect applications where space, profile, and reliable contact performance matter. With a fine 0.40 mm pitch, 10 positions, dual-row layout, and low mated stacking height, it is well suited for portable electronics, compact industrial modules, display assemblies, wearable devices, and other miniaturized embedded systems. Gold-plated contacts and a solder-retention feature support dependable assembly and signal integrity in space-constrained SMT designs. Based on the provided status, this part is listed as Active, which is favorable for ongoing procurement, although the separate lifecycle field is marked unknown, so engineers should still verify current manufacturer lifecycle data before locking it into long-term programs. RoHS compliance information is not provided in the supplied specifications, so compliance status should be treated as information not available until confirmed through the official datasheet, manufacturer declaration, or authorized distributor documentation.
