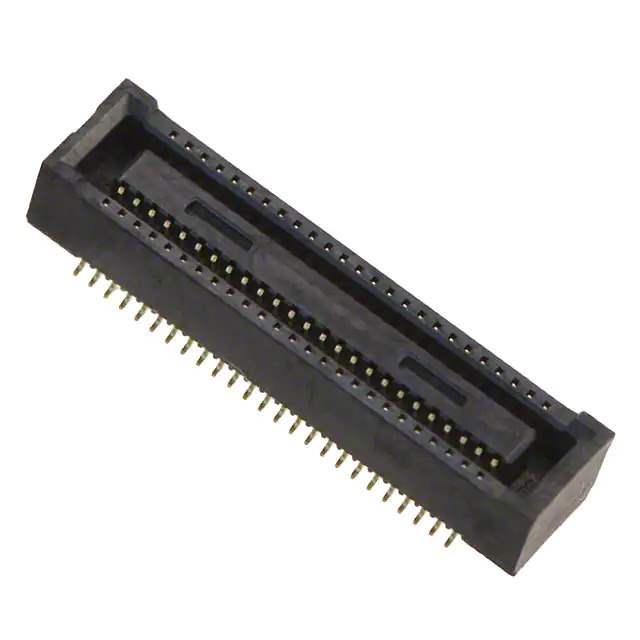

DF40B-50DS-0.4V(51)

Part No DF40B-50DS-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 50POS SMD GOLD / 50 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF40
Package Tape & Reel
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 1.5mm
Height Above Board 0.057" (1.45mm)
Base Product Number DF40B
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 917004-DF40B-50DS-0.4V(51)
Ultra Librarian 3D Model Ultra Librarian DF40B-50DS-0.4V(51) CAD Model

Description

DF40B-50DS-0.4V(51) from Hirose Electric Co Ltd is a fine-pitch board-to-board rectangular connector designed for compact electronic assemblies that need reliable mezzanine interconnection in limited space. As part of the DF40 series, this 50-position, 0.40 mm pitch receptacle is well suited for portable devices, industrial control modules, embedded computing boards, medical electronics, and other dense PCB designs where low profile and consistent mating performance matter. Features such as gold contact finish and solder retention support stable assembly and long-term connection reliability in automated production environments. The listed product status is Active, which is favorable for current designs, although lifecycle planning should still be verified through official manufacturer channels. RoHS compliance information is not explicitly provided in the supplied specifications, so compliance status should be treated as information not available pending confirmation from Hirose documentation or an authorized distributor. For procurement teams, the tape-and-reel packaging and standard 5,000-piece packaging support scalable production sourcing.
