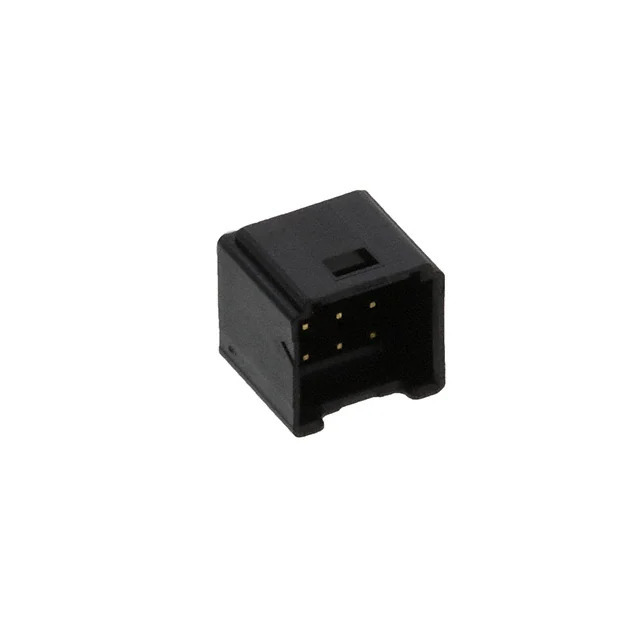

Same model may have multiple batches, images only for reference.

DF51K-6DP-2DSA(805)

Name: DF51K-6DP-2DSA(805)
Brand: Hirose Electric Co Ltd
SKU: 1363569
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF51K-6DP-2DSA(805)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 2MM DUAL GLD PCB 6POS / Connector Header Through Hole 6 position 0.079" (2.00mm)
Datasheet	DF51K-6DP-2DSA(805) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	SignalBee™ DF51K
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	-
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	-
Insulation Height	0.331" (8.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.94µin (0.100µm)
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	-
Temperature Range - Operating	-55°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	250VAC/DC
Mated Stacking Heights	-
Contact Finish Thickness - Post	3.94µin (0.100µm)
Applications	General Purpose, Industrial, Medical
Base Product Number	DF51K
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1363569-DF51K-6DP-2DSA(805)
Ultra Librarian 3D Model	Ultra Librarian DF51K-6DP-2DSA(805) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd SignalBee™ DF51K is a header connector with male pins.

Mounting Type: Through Hole
Connection Type: Board to Cable/Wire
Pitch: 0.079" (2.00mm)
Number of Positions: 6
Number of Rows: 2
Contact Finish: Gold
Contact Finish Thickness: 3.94μin (0.100μm)
Contact Material: Brass
Insulation Material: Polybutylene Terephthalate (PBT) with Glass Filling
Voltage Rating: 250VAC/DC
Applications: General Purpose, Industrial, Medical
Style: Shrouded with 4 Walls
Termination Type: Solder
Fastening: Latch Holder
