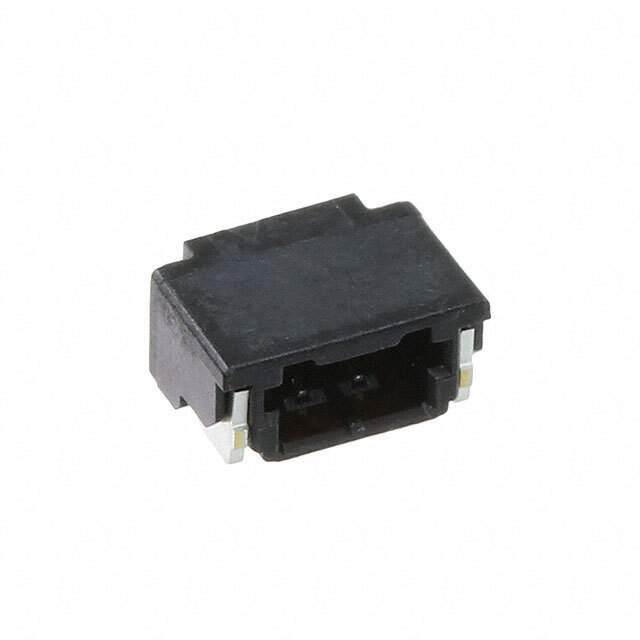

Same model may have multiple batches, images only for reference.

DF52-2S-0.8H(21)

Name: DF52-2S-0.8H(21)
Brand: Hirose Electric Co Ltd
SKU: 1339916
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF52-2S-0.8H(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN SOCKET 2P 0.031 TIN SMD R/A / 2 Position Socket Connector 0.031" (0.80mm) Surface Mount, Right Angle Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	DF52
Package	Tape & Reel
Connector Type	Socket
Contact Type	Non-Gendered
Style	Board to Cable/Wire
Number of Positions	2
Number of Positions Loaded	All
Pitch - Mating	0.031" (0.80mm)
Number of Rows	1
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.069" (1.75mm)
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Glow Wire Compliant, Solder Retention
Current Rating (Amps)	1.5A
Voltage Rating	100V
Insulation Material	Polyamide (PA) , Nylon, Halogen Free
Contact Material	Copper Alloy
Base Product Number	DF52
Standard Package	5,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339916-DF52-2S-0.8H(21)
Ultra Librarian 3D Model	Ultra Librarian DF52-2S-0.8H(21) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF52 series connector assembly is a rectangular connector with 2 positions.

Number of Positions: 2
Connector Type: Socket
Contact Type: Non-Gendered
Positions Loaded: All
Termination: Solder
Contact Material: Copper Alloy
Contact Finish - Mating: Tin
Voltage Rating: 100V
Glow Wire Compliant: Yes
Features: Solder Retention
Insulation Material: Polyamide (PA), Nylon, Halogen-Free
Material Flammability Rating: UL94 V-0
Standard Package: 5,000
Style: Board to Cable/Wire
Operating Temperature: -40°C to 85°C
Current Rating: 1.5A
Mounting Type: Surface Mount, Right Angle
